Linear Bearing Block SCS8LUU (Long Closed ? 8mm Dia)

Overview

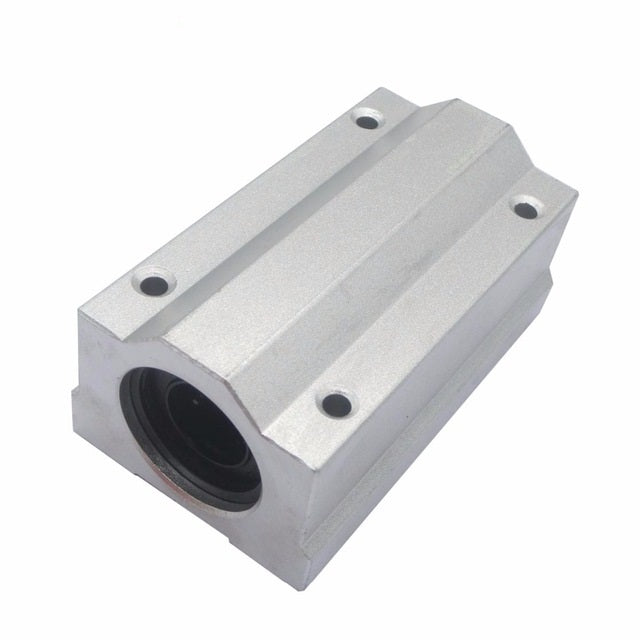

The SCS8LUU Linear Bearing Block is a high-precision, closed-type linear ball bearing housed in a durable aluminum block. Engineered for smooth and reliable linear motion, this bearing is a fundamental component for CNC machines, 3D printers, and various automation projects. Its compact design and robust construction ensure low friction, high rigidity, and long service life, making it a top choice for makers and engineers in Egypt.

Key Features

• Closed-Type Design: Provides full enclosure of the ball bearings, offering better protection against dust and debris.
• Aluminum Housing: Lightweight yet strong, ensuring rigidity and heat dissipation.
• Low Friction: Precision-ground balls and raceways minimize friction for smooth, consistent motion.
• High Load Capacity: Supports radial and axial loads, suitable for demanding applications.
• Easy Mounting: Pre-drilled holes allow for quick and secure installation on various surfaces.

Technical Specifications

• Shaft Diameter: 8mm
• Type: Closed, Long (LUU)
• Overall Length: 58mm
• Overall Width: 34mm
• Overall Height: 22mm
• Mounting Hole Distance: 26mm (center to center)
• Mounting Hole Diameter: 4.5mm
• Dynamic Load Rating: 370N
• Static Load Rating: 470N
• Weight: Approximately 0.13 kg

Applications & Use Cases

• CNC Routers and Mills: Ideal for guiding axes with precision and stability.
• 3D Printers: Ensures smooth movement for print heads and build plates.
• Linear Motion Systems: Suitable for automated machinery, pick-and-place systems, and conveyor guides.
• Robotics: Provides reliable linear movement in robotic arms and gantries.
• DIY Projects: Perfect for hobbyists building custom linear actuators or motion stages.

What's Included

• 1x SCS8LUU Linear Bearing Block (with integrated ball bearing)
• Mounting screws (M4 x 8mm) – 4 pcs

Compatibility

• Fits 8mm linear shafts (hardened and ground recommended)
• Compatible with standard SCS8 series bearing blocks
• Works with a wide range of CNC and 3D printer kits

MOKWN Recommendation

For optimal performance, pair the SCS8LUU with a hardened and ground 8mm linear shaft. This bearing block is an excellent choice for upgrading your CNC machine or building a new linear motion system. Its closed design ensures longevity even in dusty workshop environments. Order now from MOKWN and experience smooth, precise motion in your projects!
