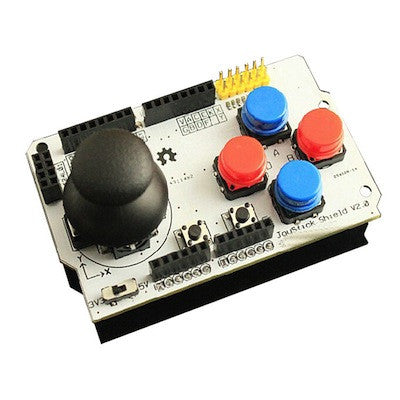

Joystick Shield for Arduino

Overview

Elevate your Arduino projects with the Joystick Shield, a versatile input expansion board that combines a 5-way navigation joystick, four push buttons, and an optional Nunchuk port. Perfect for interactive installations, robotics, and gaming prototypes, this shield plugs directly onto your Arduino Uno or Mega, giving you immediate, solder-free control over your creations.

Key Features

• 5-Way Joystick: Navigate up, down, left, right, and center with tactile feedback.
• 4 Push Buttons: Additional inputs for menus, actions, or custom commands.
• Nunchuk Port: Connect a Wii Nunchuk for even more control options.
• Plug-and-Play: No soldering required; stack directly onto your Arduino.
• Compact Design: Low-profile footprint that doesn't block access to other pins.

Technical Specifications

• Operating Voltage: 5V (supplied by Arduino)
• Interface: Digital I/O (uses pins A0-A5, D2-D9)
• Joystick Buttons: 5 (up, down, left, right, center)
• Additional Buttons: 4 (user-defined)
• Connectors: 2×6 pin female header, Nunchuk port
• Compatibility: Arduino Uno, Mega, and similar boards with standard pin spacing

Applications & Use Cases

• Robotics: Control servo motors or drive systems with precise joystick input.
• Gaming: Build your own retro game console or interactive game controller.
• User Interfaces: Create menu navigation systems for displays or IoT devices.
• Educational Projects: Teach input handling and event-driven programming.

What's Included

• 1× Joystick Shield for Arduino
• 1× Nunchuk connector (soldered on board)

Compatibility

• Works with Arduino Uno, Arduino Mega, and any board with matching pin headers.
• Compatible with Arduino IDE, and can be used with Scratch, Python (via Firmata), and other frameworks.

MOKWN Recommendation

Ideal for hobbyists, students, and professionals looking to add intuitive control to their Arduino projects. Its ease of use and compact design make it a must-have for any maker's toolkit. Order now and start building!
