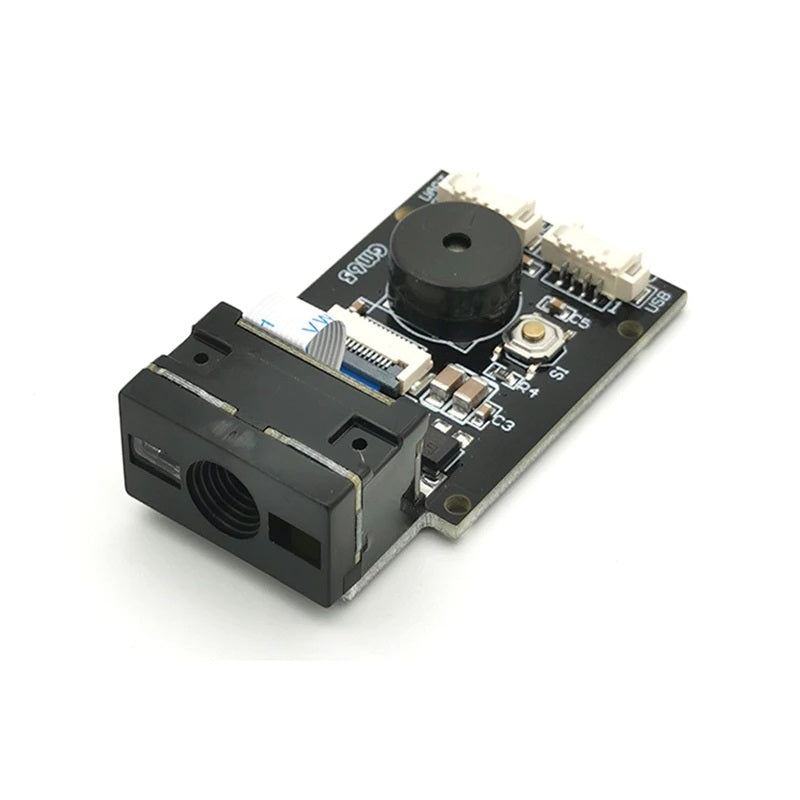

GM65 QR and Barcode Scanner (1D - 2D Barcode)

Overview

Unlock seamless data capture with the GM65 QR and Barcode Scanner – a compact, high-performance 1D/2D barcode reader designed for makers, developers, and businesses across Egypt. Whether you're building a smart inventory system, automating a checkout process, or integrating barcode scanning into your next robotics project, the GM65 delivers reliable, fast, and accurate scanning in a tiny form factor.

With both USB and UART interfaces, this scanner offers plug-and-play convenience for PC-based applications and flexible serial communication for embedded systems. Its impressive resolution and wide reading angles ensure dependable performance even in challenging lighting conditions.

Key Features

• Versatile Scanning: Reads both 1D (e.g., UPC, EAN, Code 128) and 2D (e.g., QR, Data Matrix) barcodes.
• Dual Interface: USB for direct computer connection, UART for serial communication with microcontrollers and single-board computers.
• Exceptional Resolution: Detects barcodes as small as 4 mil (0.1mm) – perfect for high-density labels.
• Wide Reading Angles: Rotating 360°, deflection ±60°, tilt ±65° – captures codes from almost any orientation.
• Robust in Any Light: Operates in ambient light from 0 to 86,000 lux, from dark rooms to bright sunlight.
• Compact Design: Ultra-small footprint (21.4mm x 13.5mm x 11.1mm) fits easily into custom enclosures and portable devices.
• Low Power: Runs on standard 5V DC, suitable for USB power or microcontroller power pins.

Technical Specifications

• Model: GM65
• Interface: USB (HID or virtual serial) / UART (TTL)
• Voltage: DC 5V
• Resolution: ≥ 0.1mm (4 mil)
• Scanning Angle: 34° (horizontal) x 26° (vertical)
• Reading Angle: Rotating 360°, Deflection ±60°, Tilt ±65°
• Ambient Light: 0 ~ 86,000 lux
• Dimensions: 21.4mm x 13.5mm x 11.1mm

Applications & Use Cases

• Inventory Management: Quickly scan products, track stock levels, and update databases.
• Point of Sale (POS): Streamline checkout processes in retail environments.
• Access Control: Scan QR codes for secure entry systems.
• Industrial Automation: Integrate into production lines for part tracking and quality control.
• Makers & Hobbyists: Add barcode scanning capabilities to Arduino, Raspberry Pi, or ESP32 projects.
• Library & Document Management: Efficiently catalog books, files, and assets.

What's Included

• 1x GM65 QR and Barcode Scanner module
• (Note: Cables and connectors may be sold separately; check product images or accessories for details.)

Compatibility

• USB: Works with Windows, macOS, Linux, and Android (via OTG) as a HID keyboard or virtual COM port.
• UART: Compatible with any microcontroller or single-board computer with a UART interface (e.g., Arduino, Raspberry Pi, ESP32, STM32).
• Operating Systems: No additional drivers required for USB HID mode; UART mode uses standard serial communication.

MOKWN Recommendation

For Egyptian makers and engineers, the GM65 is an excellent choice for projects requiring reliable barcode scanning without breaking the bank. Its dual interface flexibility makes it a go-to module for both desktop applications and embedded systems. We recommend pairing it with a USB-to-UART converter or a development board like Arduino for rapid prototyping. Order today and add professional-grade scanning to your next project!
