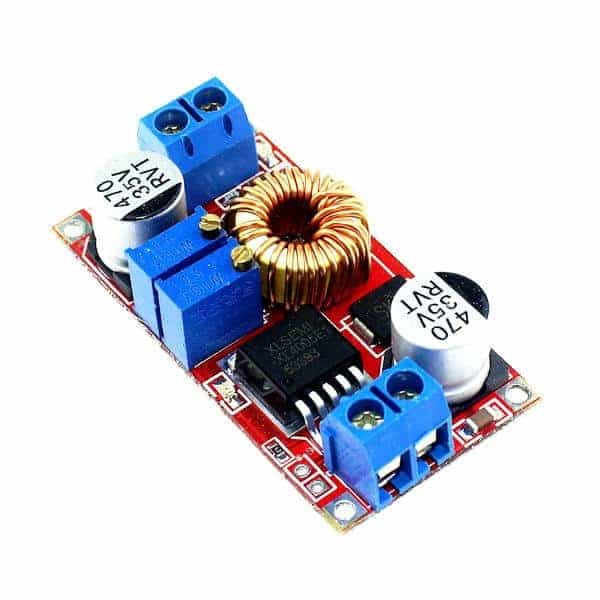

DC-DC Convereter set down 5A ( Adjustable Voltage and Current)

Overview

This DC-DC Buck Converter is a versatile and reliable step-down module that allows you to precisely adjust both output voltage and current. With an input range of 5-32 VDC and an adjustable output from 0.8-30 VDC, this converter can deliver up to 5A of continuous current. It's an essential component for any electronics project that requires stable and adjustable power, ensuring your sensitive components are protected from overvoltage and overcurrent conditions.

Key Features

• Adjustable Output Voltage: Output can be set anywhere from 0.8V to 30V, giving you full control over your power supply.
• Adjustable Output Current: Current limit can be set up to 5A, protecting your circuit from excessive current draw.
• Wide Input Voltage Range: Accepts 5V to 32V DC input, making it compatible with a variety of power sources.
• High Efficiency: Synchronous rectification design ensures high conversion efficiency, reducing heat generation.
• Built-in Protection: Includes overcurrent, over-temperature, and short-circuit protection for safe operation.
• Compact Design: Small footprint makes it easy to integrate into your projects.

Technical Specifications

• Input Voltage: 5 to 32 VDC
• Output Voltage: 0.8 to 30 VDC (adjustable)
• Output Current: up to 5A (adjustable)
• Conversion Efficiency: up to 95%
• Ripple: ≤ 50mV
• Switching Frequency: 150kHz
• Operating Temperature: -20°C to +85°C
• Dimensions: 68mm x 38mm x 15mm
• Weight: 38g

Applications & Use Cases

• Battery Charging: Perfect for charging various batteries (Li-ion, Lead-acid) with adjustable voltage and current limits.
• LED Lighting: Power high-power LEDs with precise current control for consistent brightness.
• Robotics: Provide stable power to microcontrollers, motors, and sensors in robotic projects.
• DIY Power Supplies: Build your own bench power supply with adjustable voltage and current for your lab.
• Embedded Systems: Regulate power for development boards like Arduino, Raspberry Pi, and other electronic modules.
• Automotive Projects: Step down 12V or 24V vehicle power for various accessories.

What's Included

• 1x DC-DC Buck Converter 5A (Adjustable Voltage and Current)

Compatibility

• Works with any DC power source within the input voltage range (5-32V).
• Compatible with a wide range of microcontrollers, sensors, motors, and other electronic components.
• Not compatible with AC power sources directly.

MOKWN Recommendation

This DC-DC converter is a must-have for any maker, student, or engineer working on electronics projects. Its adjustable voltage and current features make it incredibly versatile, and the high build quality ensures reliable performance. Whether you're powering a robot, charging batteries, or building a custom power supply, this module delivers the precision and protection you need. Get yours today at MOKWN and take your projects to the next level!
