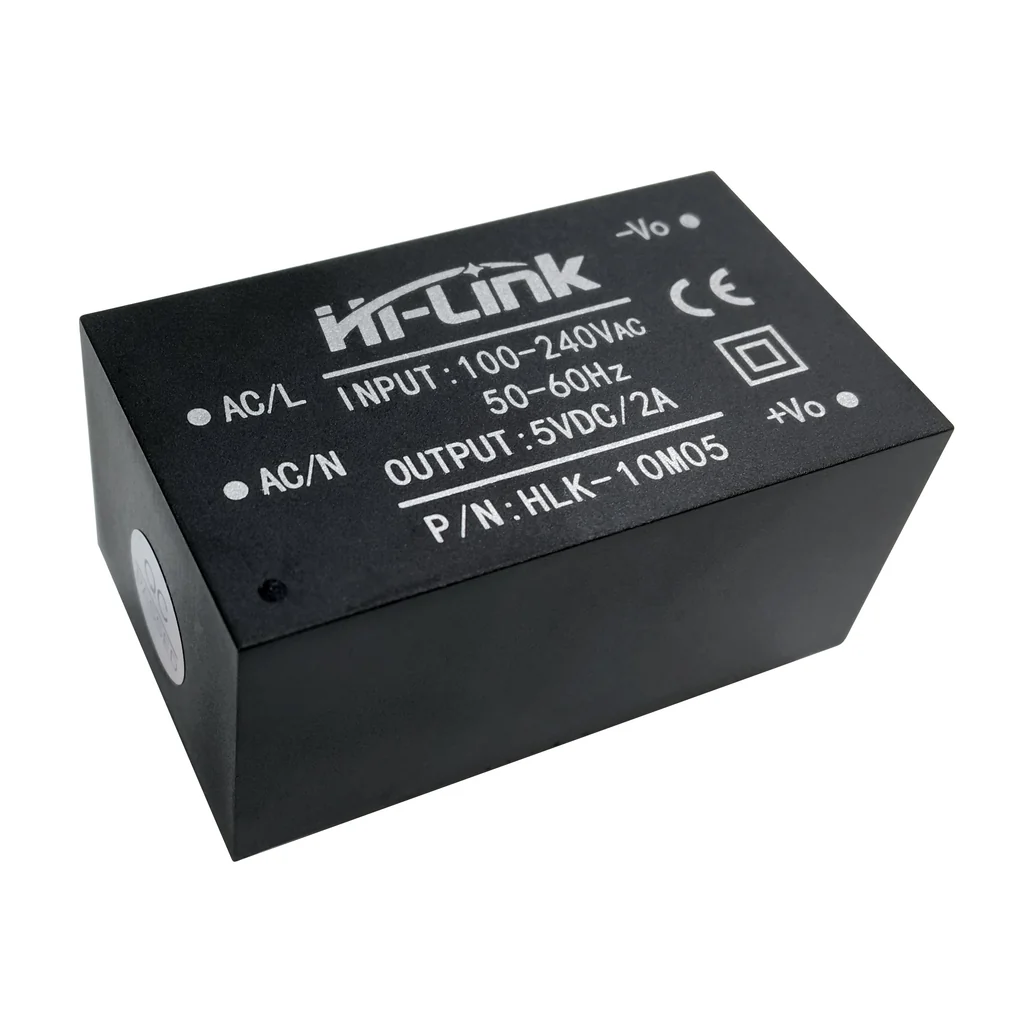

220Vac to 05Vdc 10W Compact Power Module (HLK-10M05)

Overview

The HLK-10M05 is a compact, high-efficiency AC-DC power module that converts 100-240V AC mains into a stable 5V DC output, delivering up to 10W of power. Its ultra-small size and high isolation make it an ideal choice for space-constrained embedded systems, IoT devices, and industrial applications. With global input voltage range and robust safety features, this module simplifies power design and ensures reliable operation.

Key Features

• Compact Size: Ultra-small footprint saves valuable PCB space.
• Wide Input Voltage: Accepts 100-240V AC, suitable for global use.
• High Efficiency: Minimizes energy loss and heat generation.
• Low Temperature Rise: Operates coolly, enhancing reliability.
• Low Power Consumption: Energy-efficient for battery-backed or always-on devices.
• High Isolation: Ensures safety and stable performance.
• Short-Circuit Protection: Built-in protection for added safety.
• Low Ripple & Noise: Clean output for sensitive electronics.

Technical Specifications

• Input Voltage: 100–240V AC (50-60Hz)
• Output Voltage: 5V DC
• Output Current: 2A (maximum)
• Output Power: 10W
• Efficiency: High (typically >75%)
• Isolation Voltage: 3000VAC (input to output)
• Operating Temperature: -25°C to +70°C
• Dimensions: Ultra-small package (see datasheet for exact dimensions)
• Protection: Short-circuit, over-current

Applications & Use Cases

• IoT Devices: Smart home sensors, gateways, and controllers.
• Embedded Systems: Microcontroller and Raspberry Pi power supplies.
• Industrial Control: PLCs, relay modules, and automation equipment.
• Consumer Electronics: Set-top boxes, routers, and chargers.
• LED Lighting: Constant voltage LED drivers.
• DIY Projects: Robotics and maker projects requiring a safe 5V supply.

What's Included

• 1x HLK-10M05 Power Module
• (Note: No enclosure or wiring included; sold as bare module.)

Compatibility

• Works with any device requiring a 5V DC supply up to 2A.
• Compatible with Arduino boards, ESP32, Raspberry Pi (with proper power management), and other microcontrollers.
• Can be used as a replacement for traditional 5V wall adapters in embedded systems.

MOKWN Recommendation

For Egyptian makers and engineers, the HLK-10M05 is a reliable and space-saving solution for powering your projects directly from the mains. Its compact design and high efficiency make it a top choice for IoT, automation, and DIY applications. Order now from MOKWN and enjoy fast delivery across Egypt!
