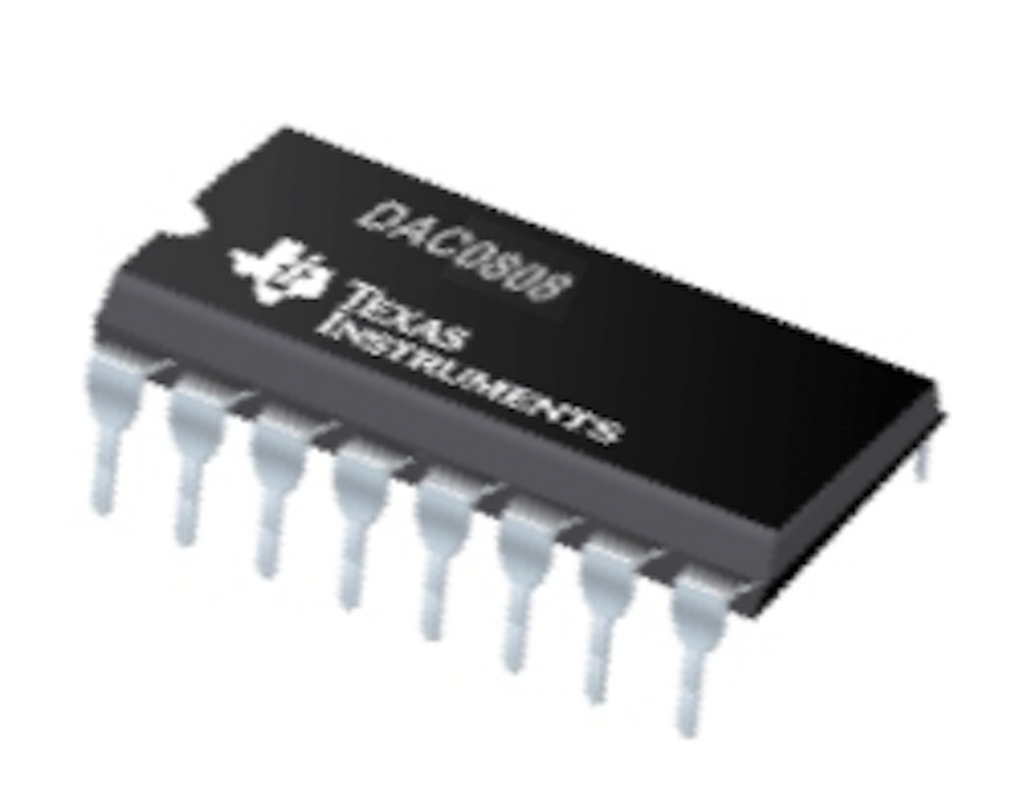

DAC0808LCN (8-bit D/A Converter)

Overview

The DAC0808LCN is a classic 8-bit digital-to-analog converter (DAC) that bridges the gap between the digital world of microcontrollers and the analog realm of sensors, actuators, and audio equipment. With its straightforward interface and fast settling time, this IC is a reliable choice for hobbyists, students, and professionals looking to generate precise analog voltages from digital signals. Whether you're building a simple waveform generator or a sophisticated control system, the DAC0808LCN delivers consistent performance and ease of use.

Key Features

• 8-Bit Resolution: Provides 256 discrete output levels, allowing for fine-grained analog control.
• Fast Settling Time: 150 ns typical, enabling high-speed signal generation and real-time applications.
• Accurate Conversion: Relative accuracy of ±0.19% maximum error ensures dependable output.
• Microprocessor Compatible: Easy to interface with all popular microcontrollers and digital systems.
• Wide Operating Range: Works with standard power supplies and accepts digital input levels compatible with TTL/CMOS logic.

Technical Specifications

| Parameter | Value | |-----------|-------| | Resolution | 8 Bits | | Relative Accuracy | ±0.19% error maximum | | Settling Time | 150 ns (typical) | | Supply Voltage | +5V to +15V (V+) and -5V to -15V (V-) | | Digital Input | TTL/CMOS compatible | | Output | Current output (typically 0-2 mA) | | Package | DIP-16 (Dual Inline Package) |

Applications & Use Cases

• Audio Synthesis: Generate simple tones, sound effects, or even 8-bit music.
• Waveform Generation: Create sine, square, triangle, and arbitrary waveforms for testing.
• Motor Control: Provide analog reference voltages for speed or position control.
• LED Brightness Control: Adjust brightness levels with PWM-like precision.
• Calibration and Testing: Produce precise analog voltages for calibrating circuits.
• Educational Projects: Perfect for learning about digital-to-analog conversion in electronics courses.

What's Included

• 1 x DAC0808LCN 8-bit D/A Converter IC

Compatibility

• Works with Arduino, Raspberry Pi, PIC, AVR, STM32, and any microcontroller with digital output pins.
• Can be used with external op-amps to convert current output to voltage.
• Operates with standard +5V and -5V supplies, commonly available in lab power supplies.

MOKWN Recommendation

For Egyptian makers and engineers, the DAC0808LCN is a dependable and affordable way to add analog output capabilities to your digital projects. Its simple interface and proven performance make it an excellent choice for both learning and practical applications. Pair it with an op-amp like the LM358 for easy voltage output, and you'll have a versatile DAC solution ready for your next creation.

Order the DAC0808LCN today from MOKWN and start converting digital brilliance into analog reality!
