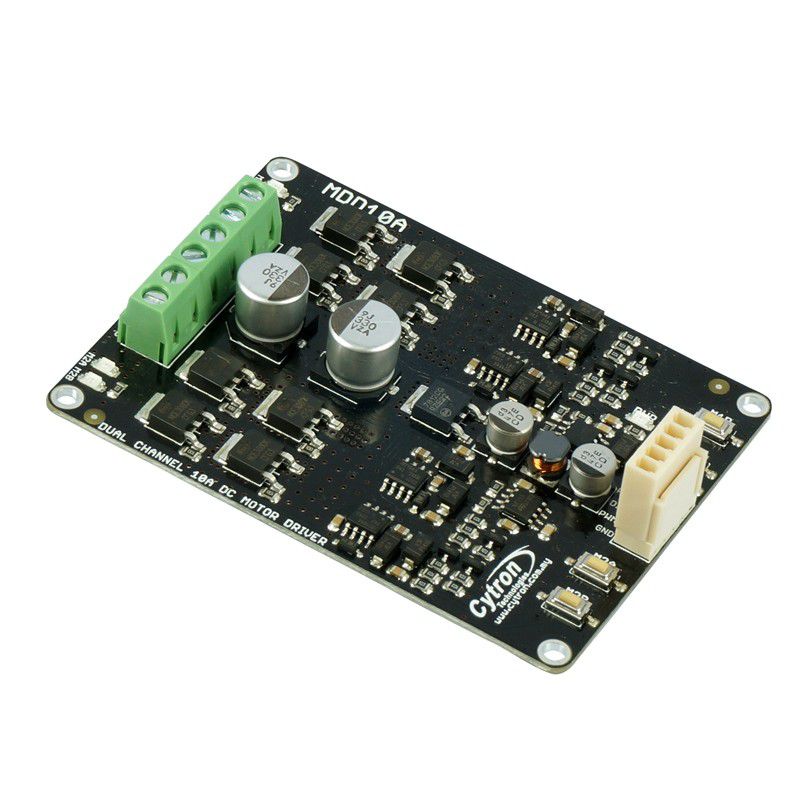

Cytron Dual Channel 10A DC ( 5 - 30 V ) MDD10A. Motor Driver

Overview

The Cytron MDD10A is a robust dual-channel DC motor driver capable of delivering up to 10A continuous current per channel (30A peak) across a wide 5-30V supply range. Designed for demanding robotics and automation projects, it supports both locked-antiphase and sign-magnitude PWM control methods, providing flexible and efficient motor speed and direction control. Its compact form factor and straightforward interface make it an ideal choice for makers, students, and engineers.

Key Features

• High Current Capacity: 10A continuous, 30A peak per channel, suitable for powerful DC motors.
• Wide Voltage Range: Operates from 5V to 30V, accommodating various power sources.
• Dual-Channel Control: Independently drive two DC motors or one stepper motor.
• PWM Compatibility: Supports both locked-antiphase and sign-magnitude PWM signals for precise control.
• Built-in Protection: Includes thermal shutdown, over-current protection, and reverse polarity protection.
• LED Indicators: Visual feedback for power and direction status.
• Compact Design: Easy to integrate into tight spaces.

Technical Specifications

• Supply Voltage: 5V - 30V DC
• Output Current: 10A continuous, 30A peak per channel
• Control Signal: PWM (Locked-Antiphase or Sign-Magnitude)
• Logic Voltage: 3.3V - 5V compatible
• Dimensions: 69.5mm x 65.5mm x 24mm
• Weight: 60g
• Mounting Holes: 4x M3
• Operating Temperature: -20°C to +85°C

Applications & Use Cases

• Robotics: Drive high-torque motors in robots, robotic arms, and autonomous vehicles.
• Automation: Control conveyor belts, actuators, and other industrial automation equipment.
• Education: Ideal for university projects, STEM labs, and hobbyist experimentation.
• 3D Printing: Suitable for high-power extruder or bed motors in DIY 3D printers.
• Electric Vehicles: Power small electric carts, scooters, or custom EV projects.

What's Included

• 1x Cytron MDD10A Dual Channel Motor Driver
• 1x User Manual (English)

Compatibility

• Microcontrollers: Works with Arduino, Raspberry Pi, STM32, and any MCU with PWM output.
• Motor Types: DC brushed motors, stepper motors (bipolar).
• Power Supplies: Any 5-30V DC supply capable of delivering required current.

MOKWN Recommendation

The Cytron MDD10A is the go-to choice for Egyptian makers and engineers who need reliable, high-current motor control. Its robust design and protective features ensure long-lasting performance, making it an excellent investment for advanced robotics projects. We recommend pairing it with a suitable heat sink for continuous high-load applications.
