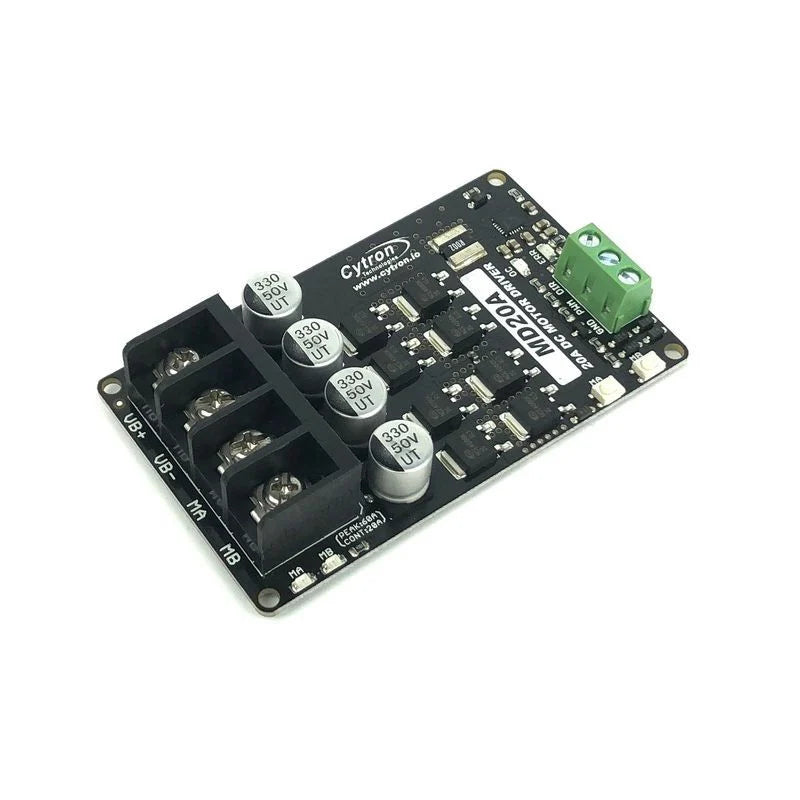

Cytron 20A 6V-30V DC Motor Driver

Overview

Control a single DC motor with precision using the Cytron MD20A 20A DC Motor Driver. Engineered for robotics, automation, and DIY projects, this driver supports bidirectional motor control and is fully compatible with Arduino and Raspberry Pi. Its robust design includes overcurrent and thermal protection, ensuring reliable performance in demanding applications.

Key Features

• Bidirectional control: Drive your DC motor forward and reverse smoothly.
• Wide voltage range: Operates from 6V to 30V, accommodating various motor types.
• High current capacity: Supports up to 20A continuous current, ideal for high-power motors.
• Arduino & Raspberry Pi compatible: Simple PWM and direction pins for easy integration.
• Protection circuitry: Built-in overcurrent and thermal shutdown safeguards your motor and driver.
• Compact and robust: Designed for easy mounting and durability in robotics.

Technical Specifications

• Operating Voltage: 6V – 30V DC
• Continuous Current: 20A (with proper heatsink)
• Peak Current: 30A (short duration)
• Control Inputs: PWM, Direction (logic level 3.3V – 5V)
• Dimensions: 70mm x 50mm x 20mm
• Weight: 50g
• Protection: Overcurrent, Overtemperature

Applications & Use Cases

• Robotics: Drive motors for mobile robots, robotic arms, and automated guided vehicles.
• Automation: Control conveyor belts, pumps, and actuators in industrial settings.
• Education: Ideal for university labs and maker workshops teaching motor control.
• DIY Projects: Perfect for custom electric vehicles, drones, and home automation systems.

What's Included

• 1x Cytron MD20A DC Motor Driver
• 1x Quick Start Guide
• (Note: Heatsink not included; optional for high-current applications)

Compatibility

• Arduino boards (Uno, Mega, Nano)
• Raspberry Pi (GPIO)
• Other microcontrollers (ESP32, STM32) with PWM output
• DC motors (6V-30V, up to 20A)

MOKWN Recommendation

For makers and engineers in Egypt, the Cytron MD20A is a reliable and powerful choice for driving high-current DC motors. Pair it with a suitable heatsink and power supply for optimal performance. Whether you're building a robot or automating a system, this driver delivers the performance you need.
