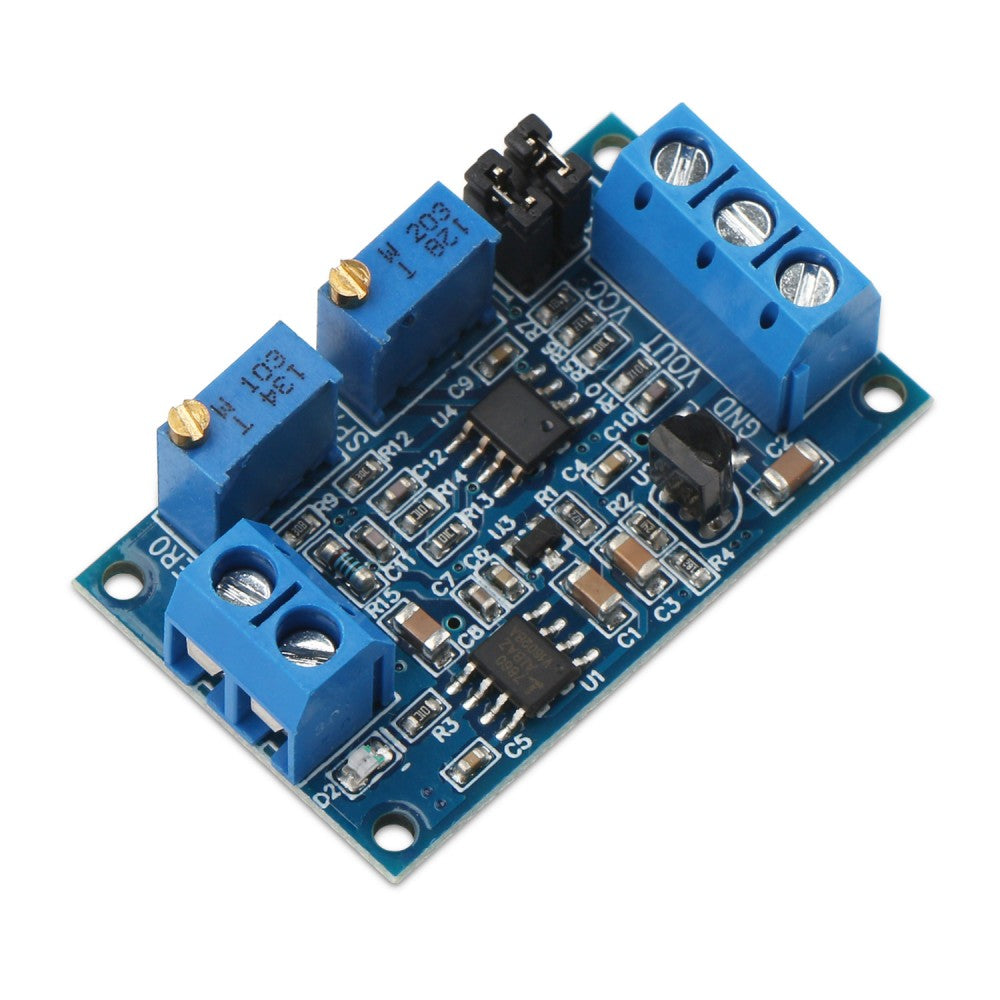

Current Loop to Voltage Converter (4-20mA to 0-3.3V/ 0-5V/ 0-10V)

Overview

Transform standard 4-20mA current loop signals into usable voltage outputs with the MOKWN Current Loop to Voltage Converter. This compact module bridges the gap between industrial sensors (pressure, temperature, flow) and your microcontroller or PLC, ensuring seamless integration in automation projects. With selectable output ranges (0-3.3V, 0-5V, 0-10V) and high accuracy, it simplifies signal conditioning for both hobbyists and professionals.

Key Features

• Versatile Output Ranges: Switch between 0-3.3V, 0-5V, or 0-10V via onboard jumper or potentiometer.
• High Accuracy: Maintains ±0.1% accuracy for reliable data acquisition.
• Wide Input Compatibility: Accepts 4-20mA current loops from standard industrial sensors.
• Low Power Consumption: Operates efficiently with minimal power draw.
• Compact Design: Small footprint fits easily into enclosures and PCB projects.
• Easy Adjustment: Onboard trimmer allows fine-tuning of output scaling.

Technical Specifications

• Input Signal: 4-20mA current loop
• Output Ranges: 0-3.3V, 0-5V, 0-10V (selectable)
• Accuracy: ±0.1%
• Supply Voltage: 12V-24V DC (typical 24V)
• Operating Temperature: -20°C to +85°C
• Dimensions: 45mm x 25mm x 12mm
• Interface: Screw terminals for easy wiring

Applications & Use Cases

• Industrial Automation: Interface with PLCs, SCADA systems, and process controllers.
• Sensor Interfacing: Connect 4-20mA sensors (pressure, temperature, level) to microcontrollers like Arduino, ESP32, or Raspberry Pi.
• Data Acquisition: Convert current signals for analog-to-digital converters (ADC) in embedded systems.
• Building Automation: Integrate HVAC sensors and actuators into smart systems.
• IoT Projects: Enable remote monitoring and control of industrial equipment.

What's Included

• 1x Current Loop to Voltage Converter Module
• 1x 3-pin screw terminal connector (pre-soldered)
• 1x User manual with wiring diagram

Compatibility

• Works with any microcontroller or PLC that accepts 0-3.3V, 0-5V, or 0-10V analog input.
• Compatible with Arduino, Raspberry Pi, ESP32, STM32, and most industrial controllers.
• Pairs well with 4-20mA transmitters and sensors.

MOKWN Recommendation

Ideal for Egyptian engineers, students, and automation enthusiasts who need reliable signal conversion in industrial or DIY projects. The module's flexibility and accuracy make it a must-have for anyone working with 4-20mA sensors. Order today and simplify your sensor integration with MOKWN's fast delivery across Egypt.
