C-Beam Linear Rail (1m)

Overview

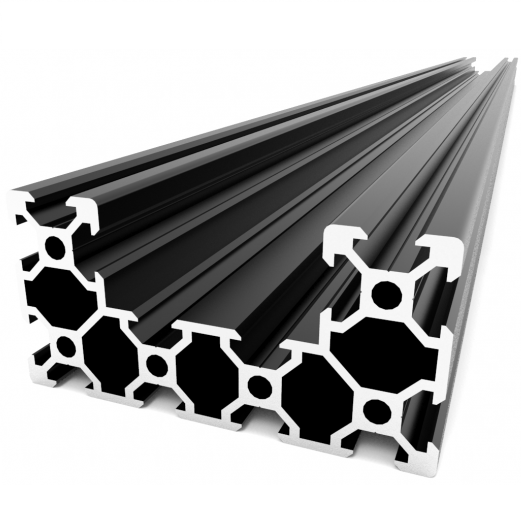

The C-Beam Linear Rail (1m) is a revolutionary structural component that merges the rigidity of a modular framing system with the precision of a linear motion rail. This 1-meter profile is engineered from high-strength aluminum, offering an exceptional strength-to-weight ratio. Its unique 'C' shape provides a stable base for linear motion systems, reducing vibration and ensuring smooth, accurate movement. Whether you are building a 3D printer, a CNC router, or a custom automation rig, the C-Beam rail is the ideal backbone for your project.

Key Features

• High-Strength Aluminum Construction: Made from 6063-T5 aluminum, ensuring durability and long-lasting performance.
• Precision-Machined Slots: V-slots on the top and bottom allow for easy integration with V-wheel bearings, providing smooth and precise linear motion.
• Lightweight Yet Rigid: The C-shaped profile maximizes rigidity while minimizing weight, making it perfect for moving gantries and cantilevered designs.
• Modular Design: Compatible with standard M5 and M8 hardware, allowing for quick and secure connections to other C-Beam rails and brackets.
• Versatile Mounting Options: Multiple slots and holes enable flexible mounting of carriages, brackets, and other accessories.
• 1-Meter Length: Provides ample travel distance for a wide range of applications.

Technical Specifications

• Material: 6063-T5 Aluminum
• Length: 1000 mm (1 meter)
• Profile Width: 40 mm
• Profile Height: 40 mm
• Slot Type: V-slot (for use with V-wheels)
• Slot Width: 6 mm
• Hardware Compatibility: M5 and M8 screws, T-nuts
• Weight: Approximately 1.2 kg
• Finish: Anodized

Applications & Use Cases

• 3D Printers: Build sturdy gantries for Cartesian and CoreXY printers.
• CNC Engraving and Milling: Create a rigid frame for precision cutting and engraving machines.
• Robotics: Construct linear actuators, robotic arms, and sliding mechanisms.
• Automation: Ideal for pick-and-place machines, conveyor systems, and custom automation equipment.
• DIY Projects: Perfect for hobbyists and makers building custom machinery or motion systems.

What's Included

• 1 x C-Beam Linear Rail (1m)

Compatibility

• V-Wheels: Compatible with standard V-wheel bearings (e.g., OpenBuilds V-Slot wheels).
• Brackets: Works with C-Beam gantry plates and corner brackets.
• Hardware: Use M5 and M8 T-nuts, bolts, and screws for secure attachment.
• Extrusions: Can be combined with other C-Beam profiles and V-Slot aluminum extrusions for larger structures.

MOKWN Recommendation

The C-Beam Linear Rail (1m) is a must-have for any serious maker, hobbyist, or engineer in Egypt. Its versatility and robustness make it the perfect foundation for a wide range of projects, from 3D printing to CNC machining. For best results, pair it with our selection of V-wheels, brackets, and stepper motors to build a complete, high-performance motion system. Whether you are a student working on a university project or a professional developing industrial automation, this rail will exceed your expectations. Order yours today from MOKWN and take your builds to the next level!
