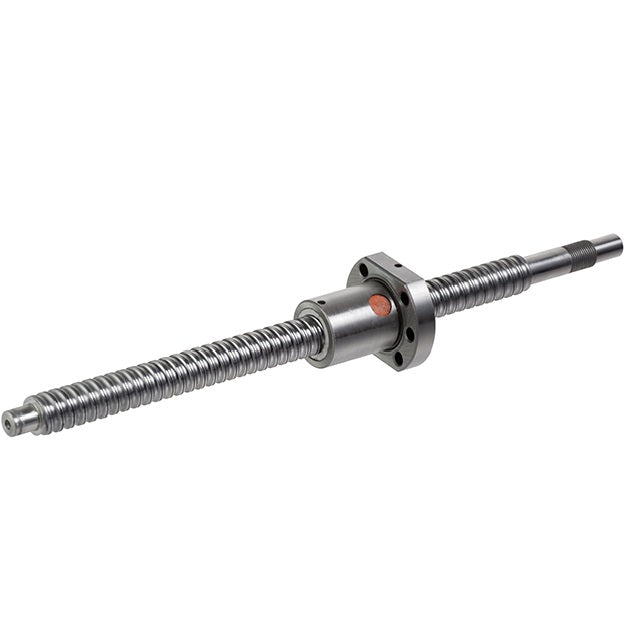

Ball Screw with Nut SFU2005 (20mm Dia - 5mm Pitch -up to 2000mm Length)

Overview

Upgrade your CNC machine or automation project with the SFU2005 ball screw assembly from MOKWN. Engineered for precision and efficiency, this ball screw converts rotary motion into smooth, near-frictionless linear motion. With a 20mm diameter and a 5mm lead, it offers an excellent balance of speed and resolution, making it a popular choice for 3D printers, laser engravers, and custom CNC routers. Available in lengths up to 2000mm, this ball screw provides the accuracy and reliability your projects demand.

Key Features

• High Efficiency: Ball bearings reduce friction to less than 10%, maximizing power transfer.
• Precision Positioning: Consistent 5mm pitch ensures accurate, repeatable linear movement.
• Smooth Operation: Near-frictionless design minimizes wear and extends component life.
• Versatile Lengths: Customizable up to 2000mm to fit various machine sizes.
• Durable Construction: Heat-treated and precision-ground for long-lasting performance.

Technical Specifications

• Screw Diameter: 20mm
• Lead (Pitch): 5mm
• Available Lengths: Up to 2000mm (custom lengths available)
• Thread Type: SFU2005 (rolled ball screw)
• Nut Type: Flanged single nut (standard)
• Accuracy Grade: C7 (standard)
• Material: High-carbon alloy steel

Applications & Use Cases

• CNC Routers & Mills: Ideal for Z-axis and X/Y-axis motion control.
• 3D Printers: Upgrade for faster, more precise layer positioning.
• Laser Engraving Machines: Achieve sharp, detailed engravings with stable motion.
• Automation Systems: Perfect for pick-and-place machines and linear actuators.
• Robotics: Used in robotic arms and gantry systems for precise movement.

What's Included

• 1x SFU2005 Ball Screw (custom length)
• 1x Matching ball nut
• 2x Precision end machining (optional, please specify)

Compatibility

• Compatible with standard 20mm ball screw mounts and couplings.
• Works with NEMA 23 and NEMA 34 stepper motors (with appropriate coupling).
• Fits most DIY CNC and 3D printer frames.

MOKWN Recommendation

For a complete motion system, pair this ball screw with our BK/BF bearing supports and a flexible shaft coupling. If you need custom end machining (threading, turning, or drilling), contact our support team before ordering. For high-speed applications, consider the SFU2005 with a higher lead (10mm or 20mm) for faster travel.
