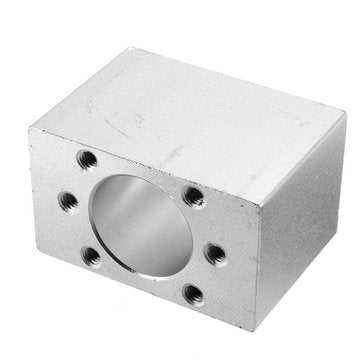

Ball screw nut housing (SFU1605)

Overview

This ball screw nut housing block is specifically engineered for SFU1605 ball screw nuts, providing a robust and precise mounting platform for your CNC machinery and automated systems. Constructed from high-quality materials, it ensures minimal play and maximum rigidity, enabling smooth and accurate linear motion along the screw's axis. Whether you are retrofitting a CNC router, building a 3D printer, or designing a custom automation solution, this housing is an essential component for achieving reliable, repeatable positioning.

Key Features

• Precision Fit: Designed specifically for SFU1605 ball screw nuts, ensuring a secure and accurate seating.
• Durable Construction: Made from high-strength aluminum alloy, offering excellent rigidity and long-lasting performance.
• Smooth Operation: Reduces friction and backlash, contributing to smoother and more precise linear movement.
• Easy Installation: Pre-drilled mounting holes allow for straightforward integration into your existing setup.
• Compact Design: Space-saving profile that fits easily into most CNC and automation frameworks.

Technical Specifications

• Compatible Screw: SFU1605 (16mm diameter, 5mm lead)
• Material: Aluminum Alloy (6061-T6)
• Mounting Hole Diameter: 5.2mm (for M5 screws)
• Mounting Hole Spacing: 28mm x 28mm (center-to-center)
• Overall Dimensions: 40mm x 40mm x 22mm (approx.)
• Weight: 120g (approx.)
• Finish: Anodized black (optional)

Applications & Use Cases

• CNC Routers & Mills: Ideal for converting rotary motion into precise linear motion for axes.
• 3D Printers: Enhances Z-axis stability and accuracy in high-end printer builds.
• Laser Engravers: Provides smooth and controlled movement for engraving and cutting.
• Automated Assembly Lines: Used in pick-and-place machines and other automation equipment.
• Custom Robotics Projects: Perfect for hobbyist and educational robotics where precision is key.

What's Included

• 1x Ball Screw Nut Housing (SFU1605)
• Mounting screws (M5x10mm) – 4 pieces
• Installation guide (available online)

Compatibility

• Compatible with SFU1605 ball screw nuts (sold separately).
• Fits standard NEMA 17 and NEMA 23 stepper motor mounts when used with appropriate couplers.
• Works with common CNC controller boards (e.g., Arduino, RAMPS, Mach3).
• Can be used with linear rails, shafts, or guide rods for a complete linear motion system.

MOKWN Recommendation

For a complete, high-performance linear motion setup, we recommend pairing this housing with our SFU1605 ball screw and a compatible linear guide. Whether you're a professional engineer or a hobbyist maker, this housing ensures the precision and reliability your projects demand. Upgrade your CNC or automation system today with MOKWN's quality components, backed by our commitment to customer satisfaction and technical support.
