Zigbee Connecting Board

Overview

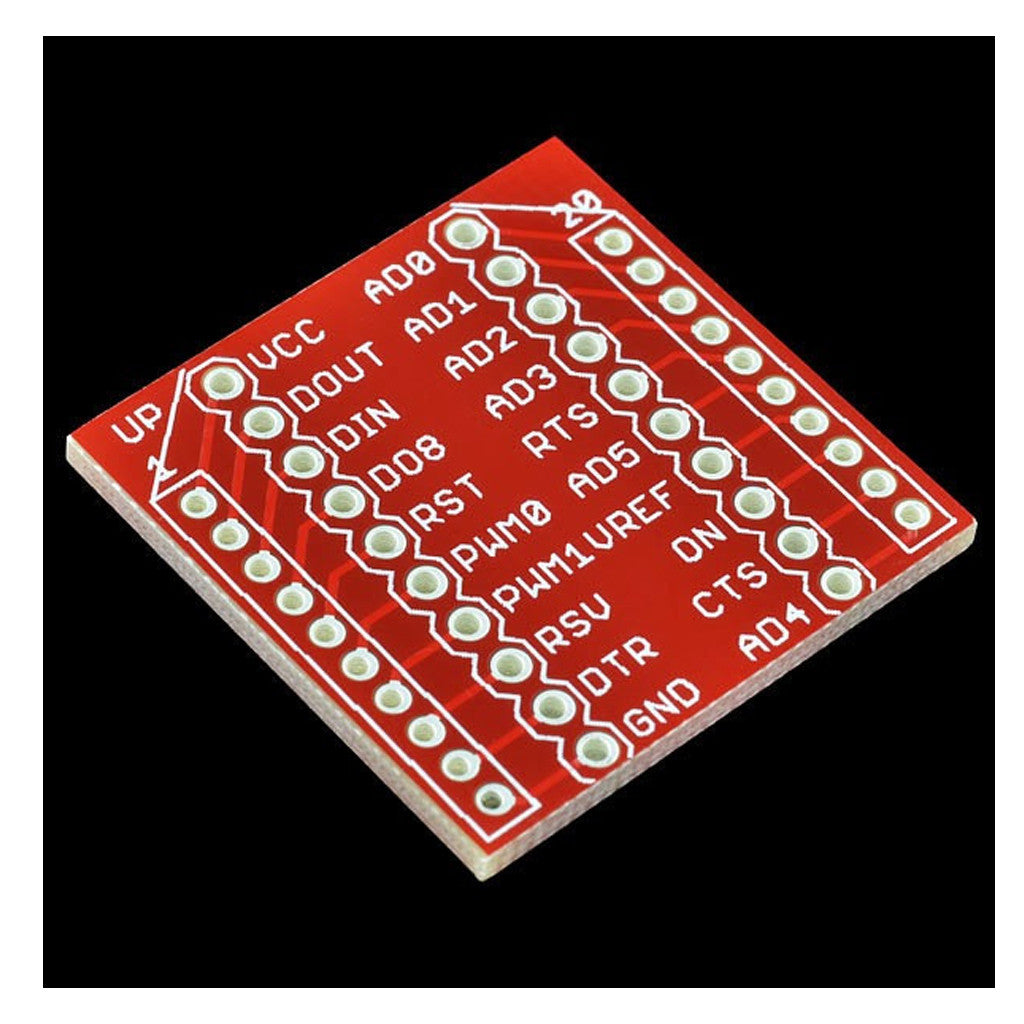

Unlock the full potential of your Zigbee and XBee modules with the MOKWN Zigbee Connecting Board. This compact breakout board brings all 20 pins of your module to a standard 0.1" dual-row header, making it effortless to prototype, test, and integrate wireless communication into your projects. Whether you're a hobbyist, student, or professional engineer, this board simplifies your workflow and ensures reliable connections.

Key Features

• Full Pin Breakout: All 20 pins of the XBee/Zigbee module are broken out to a standard 0.1" dual-row header.
• Standard Spacing: 0.1" (2.54mm) pitch headers compatible with breadboards, perfboards, and standard jumper wires.
• Easy Integration: Simplifies wiring and reduces connection errors; ideal for rapid prototyping.
• Durable Construction: High-quality PCB ensures stable performance and long-lasting use.
• Compact Design: Small footprint fits easily into tight spaces.

Technical Specifications

• Compatible Modules: XBee Series 1, Series 2, Series 3, and other Zigbee modules with 20-pin footprint.
• Pin Pitch: 0.1" (2.54mm)
• Number of Pins: 20 (2x10 header)
• PCB Material: FR-4
• Dimensions: (approx.) 2.0 x 1.0 inches (50.8 x 25.4 mm)
• Mounting: Through-hole, solderable

Applications & Use Cases

• IoT Prototyping: Quickly connect Zigbee modules to microcontrollers like Arduino, ESP32, or Raspberry Pi.
• Home Automation: Build custom smart home devices with wireless control.
• Wireless Sensor Networks: Create distributed sensor nodes for environmental monitoring.
• Robotics: Enable remote control and telemetry for robots.
• Education: Perfect for teaching wireless communication concepts in electronics labs.

What's Included

• 1x Zigbee Connecting Board
• (Headers not included, but can be added as an accessory)

Compatibility

• Works with all XBee modules that have a 20-pin 2mm pitch interface, including Series 1, Series 2 (Zigbee), and Series 3.
• Compatible with Arduino, ESP32, Raspberry Pi, and any microcontroller with standard 0.1" headers.
• Use with our range of Zigbee modules and antennas for a complete wireless solution.

MOKWN Recommendation

For a seamless wireless experience, pair this board with our Zigbee modules and a 2.4GHz antenna. Ideal for makers and engineers in Egypt looking to build reliable IoT solutions. Order now and get free shipping on orders over 500 EGP!
