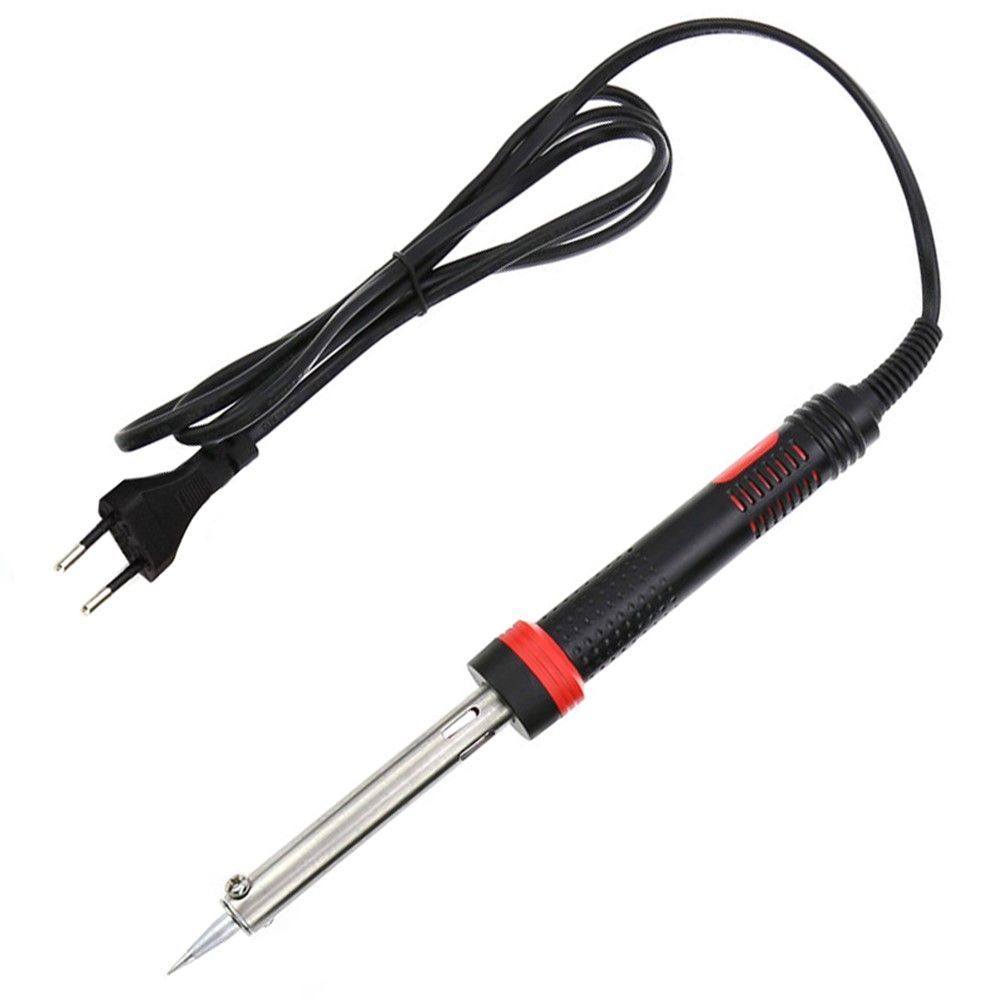

JYD JD020 Soldering Iron with LED Indicator

Overview

The JYD JD020 Soldering Iron with LED Indicator (60W, 200°C–450°C) is a sleek, pen-style temperature-controlled soldering tool engineered for electronics hobbyists, engineering students, and repair technicians. Built around an internal high-efficiency ceramic heating core, the JD020 reaches working temperature in less than 30 seconds. Its body integrates a calibrated rotary temperature potentiometer allowing precise regulation between 200°C and 450°C, alongside an illuminated LED indicator that provides immediate visual confirmation of active power status. Lightweight, well-balanced, and compatible with universal 900M-series tips, it combines laboratory-grade temperature control with desktop portability.

Key Features

• Rapid Ceramic Heating Core: Delivers fast thermal recovery and consistent heat transfer, reaching operating temperatures in under 30 seconds.
• Adjustable Temperature Dial (200°C – 450°C): Fine-tune heat levels to suit heat-sensitive ICs, standard 60/40 leaded solder, or high-melting lead-free joints.
• Built-in LED Power Indicator: Glows clearly when the iron is powered, preventing accidental burns and enhancing workshop safety.
• Ergonomic Heat-Insulated Grip: Textured, heat-resistant silicone and polymer sleeve keeps fingers cool and comfortable during extended rework sessions.
• Universal 900M Tip Compatibility: Supports widely available 900M conical, chisel, and bevel soldering tips for quick, inexpensive replacements.
• Four-Vent Heat Dissipation Shaft: Steel barrel vents direct radiant heat away from the handle, prolonging the lifespan of internal heating elements.

Technical Specifications

• Brand / Model: JYD JD020
• Rated Power: 60W
• Input Voltage: 220V AC (Standard Egyptian mains)
• Temperature Range: 200°C to 450°C (392°F to 842°F)
• Heating Element: Ceramic printed core
• Tip System: 900M series threaded retaining collar
• Cord Length: 1.2 meters
• Indicator: Integrated red LED power indicator
• Weight: Approx. 90 grams (including cable)

Applications & Use Cases

• Electronics & Arduino Prototyping: Soldering headers, DIP sockets, sensors, and passive components onto shields and perfboards.
• Wire Splicing & Cable Repair: Tinning and joining multi-strand copper cables, RC battery connectors (XT60, Deans), and power cords.
• Appliance & PCB Troubleshooting: Swapping blown electrolytic capacitors, relays, and power transistors on household boards.
• STEM Education & Maker Workshops: Reliable, safe instructional tool for school robotics clubs and university electronics laboratories.

What's Included

• 1 × JYD JD020 60W Adjustable Temperature Soldering Iron with pre-installed conical 900M soldering tip

Compatibility

• Mains Input: Plugs directly into standard Egyptian 220V–240V wall outlets without transformers.
• Soldering Tips: Compatible with all universal 900M series replacement tips (900M-T-B, 900M-T-I, 900M-T-K, 900M-T-2.4D, etc.).

MOKWN Recommendation

If you're still using an old, uncontrolled fixed-wattage soldering iron that burns your circuit boards, upgrading to the JYD JD020 is a night-and-day difference. The ability to dial down the temperature to 300°C for fine electronics prevents lifted PCB pads, while dialing up to 400°C gives you the punch needed for thick battery ground planes. Its compatibility with standard 900M tips means you can buy replacement tips anywhere across Egypt. Order your JYD JD020 from MOKWN today with nationwide fast shipping!
