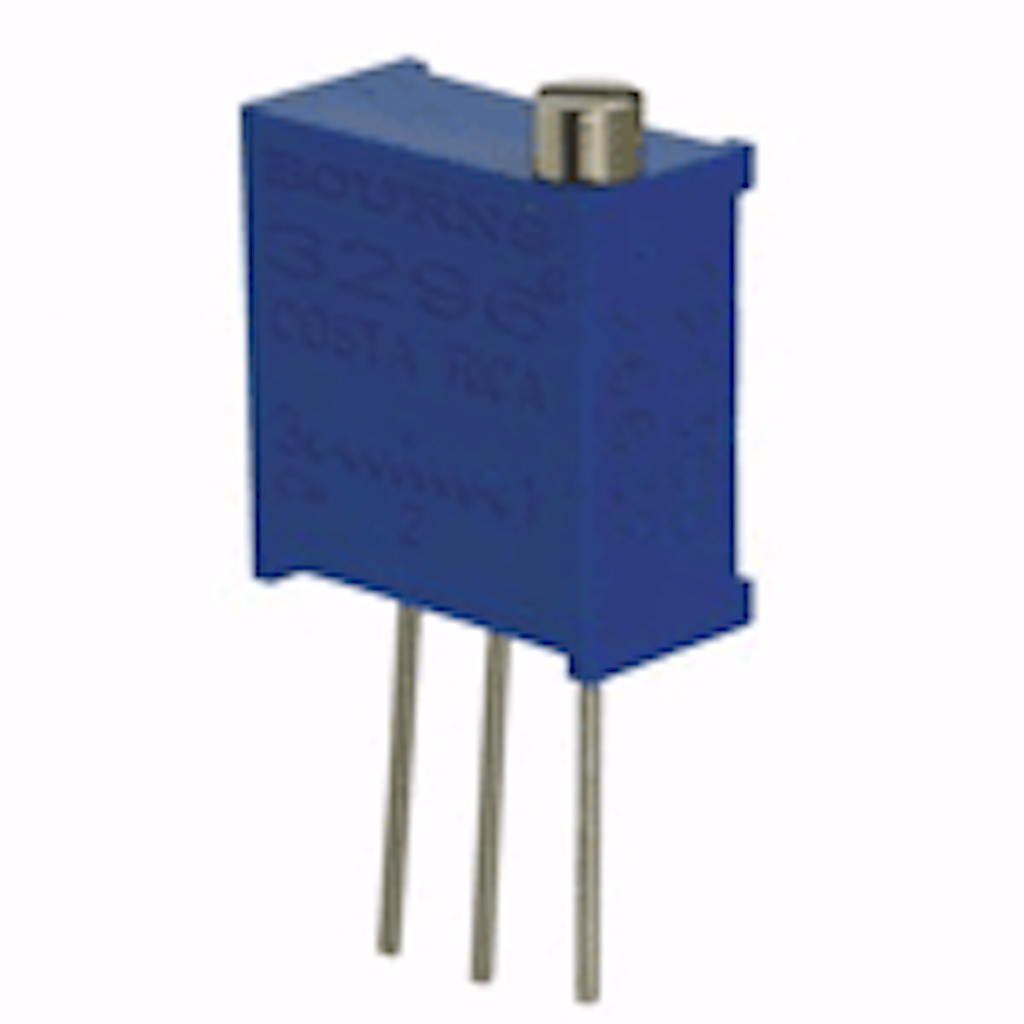

Variable Resistor - POT (1 KOhm)

Overview

The Variable Resistor - POT (1 KOhm) is a versatile and essential component for any electronics enthusiast, student, or professional. This potentiometer allows you to manually adjust resistance within a circuit, making it perfect for fine-tuning voltage levels, controlling audio volume, or serving as a user input device. Whether you're prototyping a new design or building a permanent project, this 1K POT offers reliable performance and ease of use.

Key Features

• Adjustable Resistance: Provides a range from 0 to 1 KOhm, allowing precise control over circuit parameters.
• Standard 3-Terminal Design: Compatible with a wide variety of circuits and breadboards.
• Durable Construction: Built to withstand repeated adjustments and environmental stress.
• Compact Size: Ideal for space-constrained projects and PCB mounting.
• Easy to Use: Simple rotary knob design for intuitive manual adjustment.
• Cost-Effective: An affordable solution for both hobbyist and educational projects.

Technical Specifications

• Resistance Value: 1 KOhm (1,000 Ohms)
• Tolerance: ±20%
• Power Rating: 0.1W (1/10W)
• Maximum Voltage: 50V (AC/DC)
• Number of Terminals: 3 (Input, Output, Wiper)
• Travel Life: Up to 10,000 cycles
• Operating Temperature: -10°C to +70°C
• Mounting Type: Through-hole
• Shaft Diameter: 6mm (standard)
• Shaft Length: 15mm (approx.)

Applications & Use Cases

• Audio Equipment: Volume control in amplifiers, radios, and music players.
• Power Supplies: Adjusting output voltage in linear regulators and bench power supplies.
• Sensor Calibration: Tuning sensitivity in light, temperature, and proximity sensors.
• Robotics: Adjusting motor speed or servo throw in DIY robots.
• Educational Projects: Teaching students about voltage dividers and resistance in physics and electronics classes.
• DIY Electronics: Building custom control panels, dimmers, and variable speed controllers.

What's Included

• 1 x Variable Resistor - POT (1 KOhm)
• (Note: Knob not included; available separately in our store.)

Compatibility

• Works with any breadboard, perfboard, or PCB with standard 0.1" pitch holes.
• Compatible with all microcontrollers (Arduino, Raspberry Pi, ESP32, STM32, etc.) when used in appropriate circuits.
• Can be used with multimeters for testing and calibration.

MOKWN Recommendation

This 1 KOhm potentiometer is a must-have for your electronics toolkit. It's perfect for beginners learning about variable resistors and for advanced users needing precise control. We recommend pairing it with a knob for easier handling and to enhance your project's usability. For most general-purpose applications, the 1K value is a good starting point, but explore other values (10K, 100K) for different ranges. Order now and add this essential component to your MOKWN cart!
