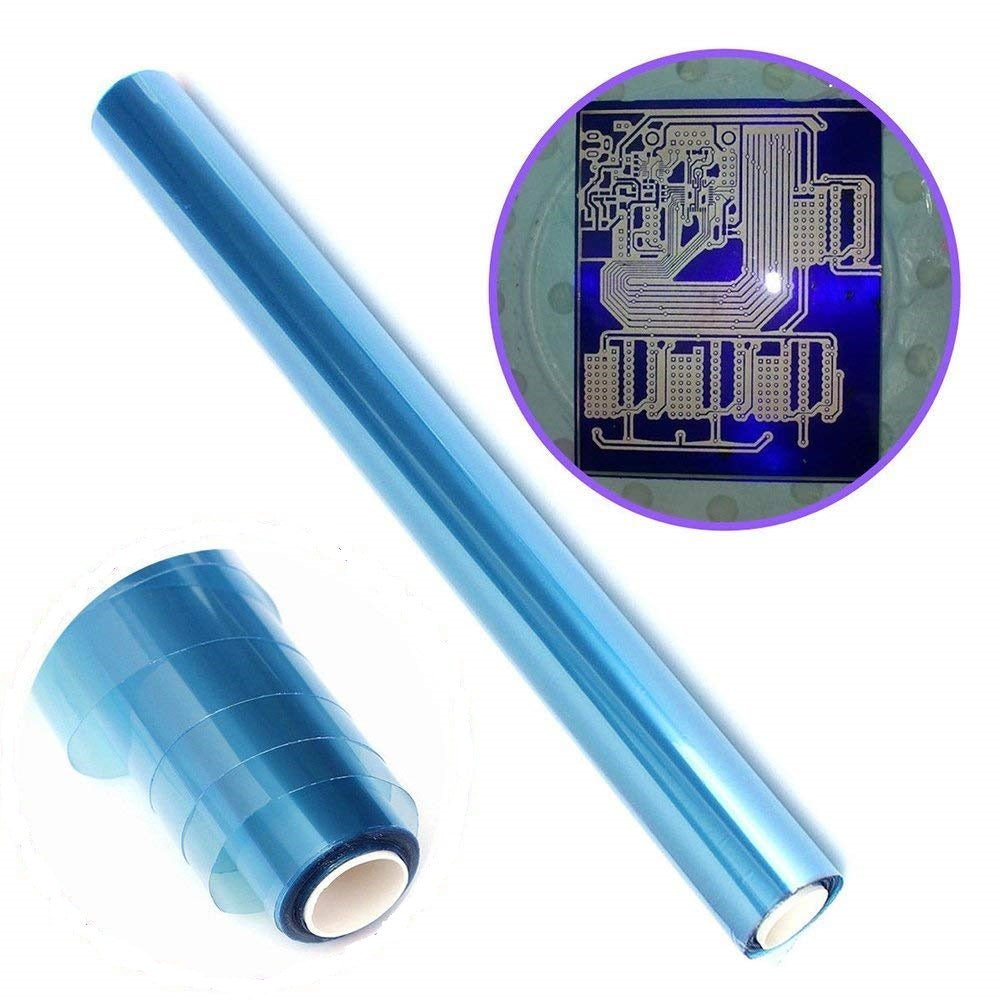

UV Photosensitive Dry Film for PCB Circuit Making (30 x 100 cm)

Overview

Create professional-grade PCBs at home or in your lab with the UV Photosensitive Dry Film for PCB Circuit Making (30 x 100 cm). This high-quality dry film photoresist is ideal for DIY PCB fabrication, allowing you to transfer intricate circuit patterns with precision. Unlike traditional methods, the dry film ensures clean, sharp tracks and is perfect for both beginners and experienced makers.

Key Features

• High Sensitivity: Responds accurately to UV light for precise pattern transfer.
• Clean Processing: Produces sharp, high-resolution tracks without the mess of liquid photoresists.
• Large Size: 30 x 100 cm sheet provides ample material for multiple projects.
• Easy to Use: Simple lamination, exposure, and development process.
• Durable: Resistant to etching chemicals, ensuring reliable circuit boards.

Technical Specifications

• Product Type: UV Photosensitive Dry Film
• Size: 30 cm x 100 cm (approx. 11.8" x 39.4")
• Color: Blue (typical)
• Thickness: Standard 30-40 microns (please verify with your specific batch)
• Sensitivity: UV spectrum (350-410 nm)
• Storage: Keep in a cool, dark, dry place to maintain shelf life

Applications & Use Cases

• DIY PCB Fabrication: Ideal for hobbyists and makers creating custom circuit boards.
• Prototyping: Quickly produce test boards for electronic projects.
• Education: Perfect for university labs and electronics courses to teach PCB design.
• Small-Scale Production: Suitable for low-volume PCB manufacturing.

What's Included

• 1 x UV Photosensitive Dry Film (30 x 100 cm)

Compatibility

• Works with standard UV exposure units (e.g., UV LED exposure boxes).
• Compatible with common PCB etching solutions (ferric chloride, cupric chloride, etc.).
• Use with a laminator for best results; also suitable for manual lamination with a roller.

MOKWN Recommendation

For best results, pair this dry film with a UV exposure unit and a good quality laminator. We recommend practicing on a small piece first to perfect your technique. Whether you're a student, engineer, or hobbyist, this dry film is an excellent choice for creating precise PCBs at a fraction of the cost of professional fabrication.
