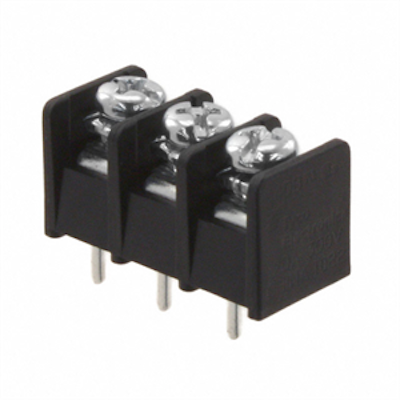

Terminal Barrier Block-3Pin

Overview

Ensure dependable and tidy electrical connections with the MOKWN Terminal Barrier Block – 3Pin. This robust, compact barrier block is engineered for secure wiring in a wide range of applications, from industrial control panels to DIY electronics projects. Its durable construction and clear specifications make it a trusted choice for both professionals and hobbyists.

Key Features

• Secure Connections: The nickel-plated brass clamps and steel screws provide a firm, reliable grip on wires, preventing accidental disconnections.
• High Current & Voltage Rating: Rated for 20A and 300V, this barrier block is suitable for power distribution and signal connections in demanding environments.
• Wide Wire Compatibility: Accepts wire sizes from 22 to 12 AWG (up to 4 mm²), accommodating various wiring needs.
• Robust Construction: Built to withstand temperatures from -40°C to +105°C, ensuring reliable performance in diverse conditions.
• Clear Identification: The 9.6mm pitch spacing allows for easy labeling and organized wiring.

Technical Specifications

• Clamp: Brass, Ni plated
• Pitch: 9.6 mm
• Screws: M4 Steel Ni plated
• Pin header: Brass, Tin plated
• Temperature Range: -40°C to +105°C
• Wire Range: 22-12 AWG (4 mm²)
• Max Soldering: +250°C for 5 seconds
• Rated Current: 20A
• Rated Voltage: 300V
• Withstanding Voltage: AC 2000V/1 min
• Insulation Resistance: 5000MΩ/DC1000V

Applications & Use Cases

• Industrial Control Panels: Ideal for connecting sensors, actuators, and power supplies.
• Power Distribution: Use in power strips, battery management systems, and DC power supplies.
• DIY Electronics: Perfect for custom projects like LED lighting, motor controllers, and audio amplifiers.
• Prototyping: Convenient for breadboard-to-permanent circuit transitions.
• Educational Kits: Great for teaching electronics and wiring fundamentals.

What's Included

• 1x Terminal Barrier Block – 3Pin

Compatibility

• Compatible with standard 22-12 AWG solid or stranded wires.
• Suitable for use with MOKWN's range of connectors, crimping tools, and wire strippers.

MOKWN Recommendation

This Terminal Barrier Block is an essential component for any maker, electrician, or engineer. Its robust build and high ratings ensure safe and reliable connections in your projects. We recommend pairing it with quality wire and using proper crimping tools for best results.
