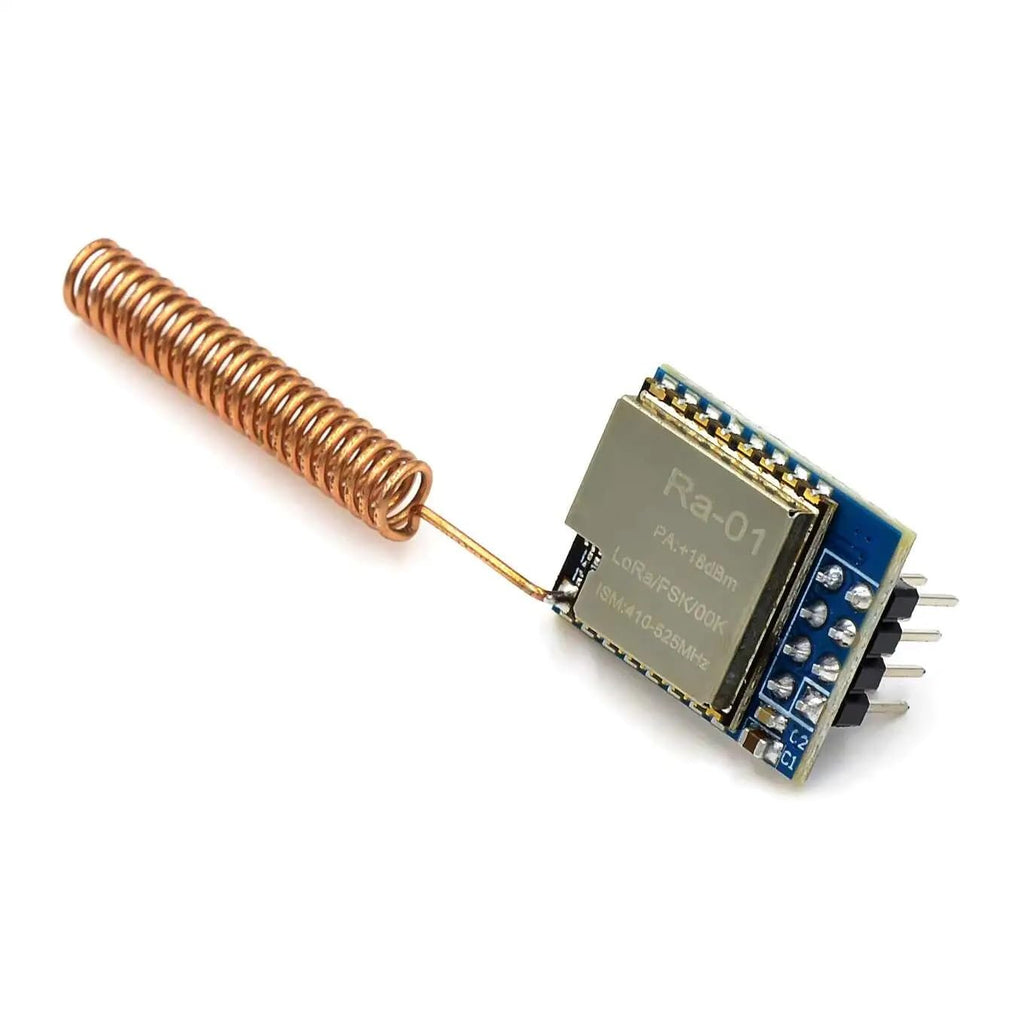

SX1278 LoRa Module

Overview

The SX1278 LoRa module is a high-performance, long-range wireless transceiver designed for IoT, M2M, and remote sensing applications. Based on Semtech's LoRa® spread-spectrum technology, it offers exceptional sensitivity and robustness, enabling reliable communication over distances far exceeding traditional FSK modules. Whether you're building a smart agriculture system, a remote weather station, or a fleet of connected devices, the SX1278 delivers low-power, long-range connectivity that's easy to integrate into your projects.

Key Features

• Long Range: Up to 127dB link budget with superior sensitivity (-148dBm) for reliable communication over kilometers.
• Low Power: Ultra-low power consumption (RX: 10.8mA, TX: 120mA @ +20dBm) ideal for battery-powered applications.
• Flexible Modulation: Supports LoRa®, FSK, GFSK, MSK, GMSK, and OOK modulation schemes.
• High Sensitivity: Excellent receiver sensitivity down to -148dBm, ensuring robust performance in challenging environments.
• Programmable Bit Rates: Up to 300kbps, allowing you to balance range and data rate.
• Automatic RF Signal Processing: Integrated CRC (up to 256 bytes) and advanced signal detection for reliable data integrity.
• SPI Interface: Easy to interface with microcontrollers like Arduino, ESP32, STM32, and Raspberry Pi.

Technical Specifications

• Frequency Range: 137-1020 MHz (configurable, typical 868/915 MHz)
• Modulation: LoRa®, FSK, GFSK, MSK, GMSK, OOK
• Sensitivity: -148 dBm (LoRa®)
• Link Budget: 127 dB
• RF Power Output: Up to +20 dBm (100 mW)
• Communication: Half-duplex SPI
• Programmable Bit Rates: Up to 300 kbps
• Supply Voltage: 1.8V - 3.7V
• Current Consumption: 10.8 mA (RX), 120 mA (TX @ +20 dBm)
• Interface: SPI
• Operating Temperature: -40°C to +85°C

Applications & Use Cases

• IoT Networks: Build low-power wide-area networks (LPWAN) for smart cities, agriculture, and logistics.
• Remote Monitoring: Transmit sensor data from remote locations such as weather stations, soil sensors, and oil/gas monitoring.
• Home Automation: Wireless control of lighting, HVAC, and security systems.
• Robotics: Enable long-range communication between robots and base stations.
• Wearables: Low-power design makes it suitable for battery-operated wearables.
• Educational Projects: Perfect for university labs and maker projects exploring wireless communication.

What's Included

• 1x SX1278 LoRa Module (breakout board)
• 1x Antenna (if applicable, check product listing)
• Pin headers (may require soldering)

Compatibility

• Arduino: Works with Arduino Uno, Nano, Mega, and other SPI-enabled boards.
• ESP32/ESP8266: Ideal for IoT projects with built-in Wi-Fi.
• STM32: Compatible via SPI.
• Raspberry Pi: Can be connected via SPI using appropriate libraries.
• LoRa Libraries: Supports popular libraries like RadioHead, LoRa, and LMIC.

MOKWN Recommendation

For Egyptian makers, students, and engineers, the SX1278 LoRa module is a game-changer for long-range wireless projects. Its low power consumption and exceptional range make it perfect for agricultural monitoring in the Nile Delta, remote desert sensing, and smart city initiatives. Pair it with an ESP32 or Arduino for a complete IoT solution. We recommend adding a high-gain antenna for maximum range. Order now and unlock the potential of long-range communication in your next project!
