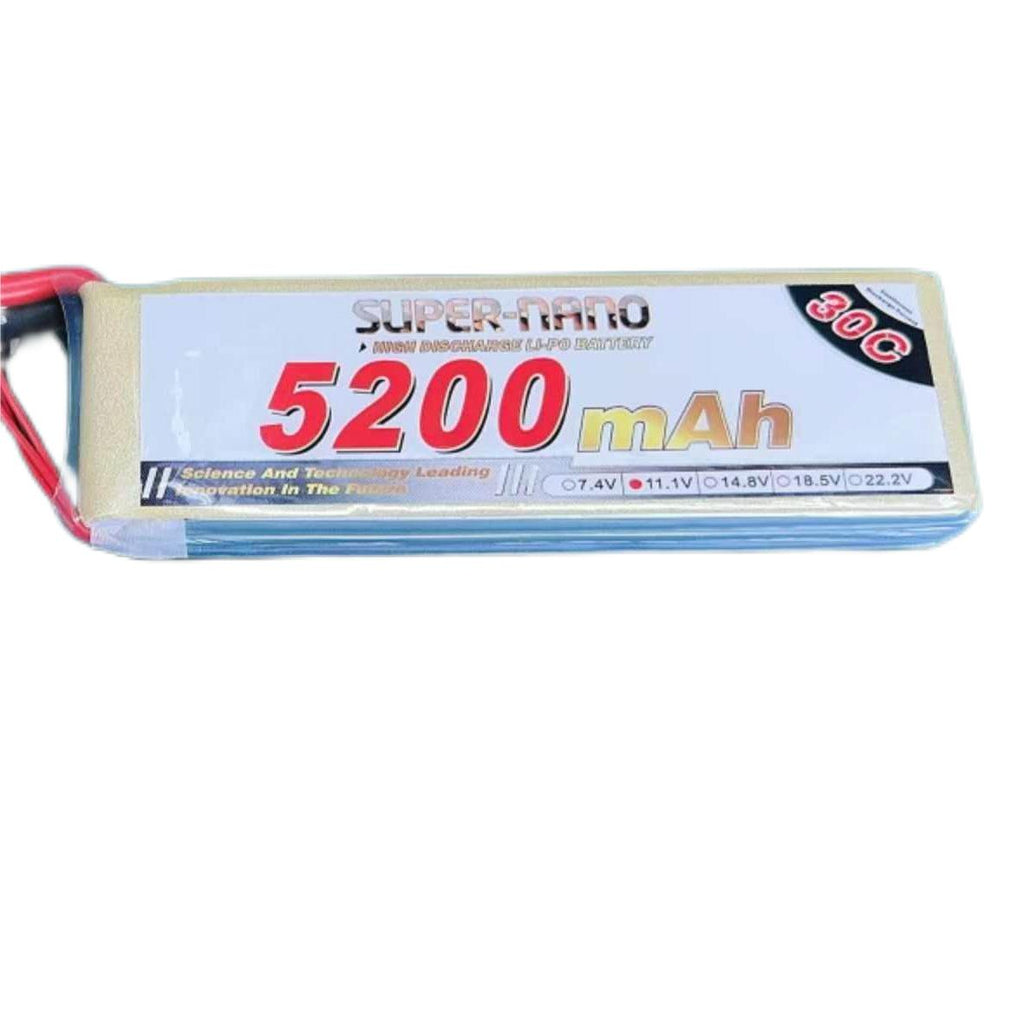

SUPER NANO Lithium Polymer Battery (11.1 V, 5200 mAH- 30C)

Overview

Power your high-performance projects with the SUPER NANO 11.1V 5200mAh 30C Lithium Polymer Battery. Engineered for demanding applications, this 3S LiPo pack delivers a potent combination of high capacity and high discharge rates, ensuring your robots, RC models, and drones perform at their peak. With a robust XT90 connector and a lightweight design, it's the reliable energy source for serious makers and hobbyists.

Key Features

• High Capacity & Voltage: 5200mAh capacity and 11.1V nominal voltage provide extended runtimes and consistent power.
• High Discharge Rate: 30C continuous and 60C burst discharge deliver the sudden power spikes needed for acceleration and heavy loads.
• Advanced LiCoO₂ Chemistry: Utilizes the world's key material, lithium cobalt oxide, for stable performance and high energy density.
• Lightweight & Compact: Weighs only 435g with dimensions of 26.2 x 49 x 155mm, making it easy to integrate into space-constrained designs.
• XT90 Connector: Industry-standard connector ensures secure, low-resistance connections.
• Fast Charging Support: Supports charge rates from 1C to 5C, allowing for quicker turnaround when you need it.

Technical Specifications

• Capacity: 5200mAh
• Nominal Voltage: 11.1V (3S)
• Continuous Discharge: 30C
• Burst Discharge: 60C
• Charge Rate: 1C - 5C (recommended)
• Dimensions: 26.2 x 49 x 155mm
• Approx. Weight: 435g
• Connector: XT90
• Chemistry: Lithium Polymer (LiPo) with LiCoO₂ cathode

Applications & Use Cases

• Robotics: Powers high-torque motors and servos in combat robots, educational robots, and autonomous vehicles.
• RC Models: Ideal for RC helicopters, airplanes, cars, and boats requiring high discharge rates.
• Drones & UAVs: Provides reliable power for FPV drones and aerial photography platforms.
• Portable Electronics: Suitable for custom power banks, portable instruments, and other high-drain devices.

What's Included

• 1 x SUPER NANO 11.1V 5200mAh 30C LiPo Battery

Compatibility

• Works with any system requiring a 3S LiPo battery with XT90 connector.
• Compatible with most RC speed controllers (ESCs) and power distribution boards.
• Use with a LiPo balance charger for optimal performance and safety.

MOKWN Recommendation

This battery is a top pick for makers and hobbyists who need a balance of capacity, weight, and power. For best results, always use a LiPo-safe bag, balance charge, and store at storage voltage when not in use. Whether you're pushing the limits of your RC car or powering a custom robot, the SUPER NANO battery delivers the punch you need.
