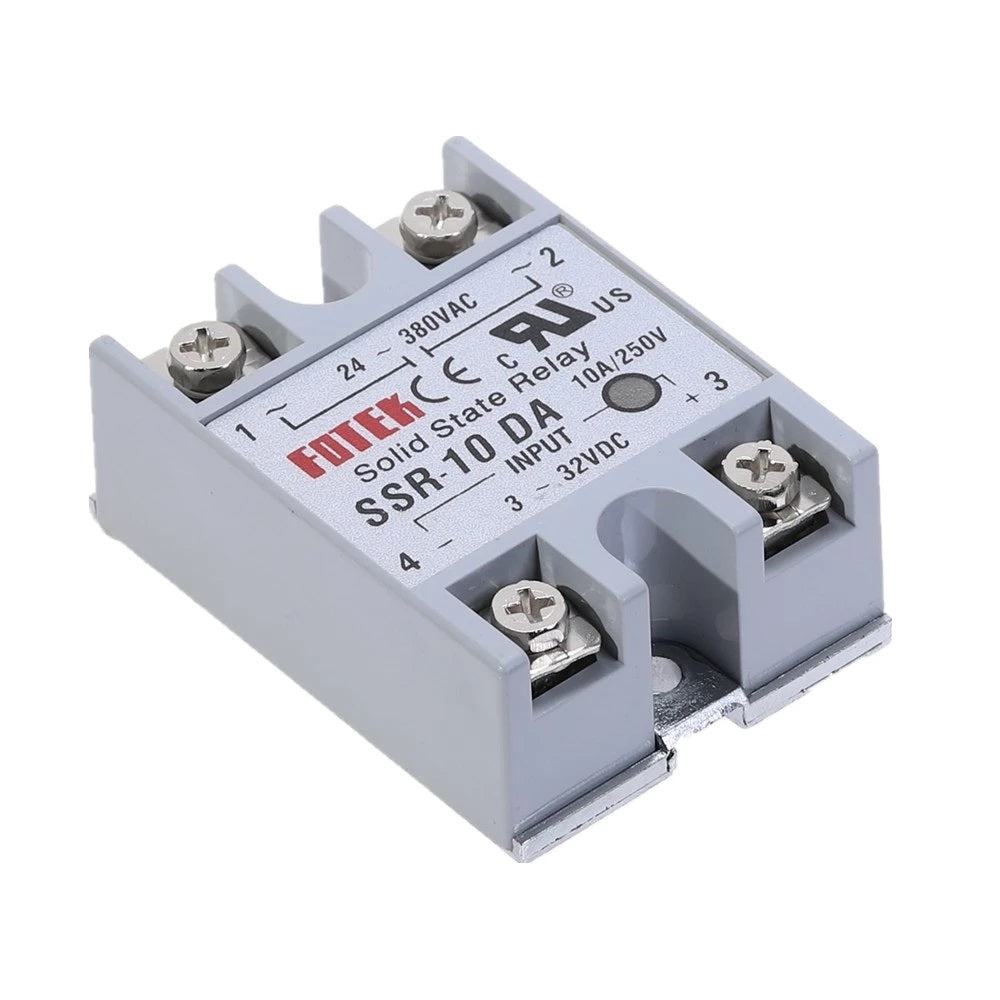

SSR-10DA Solid State Relay 10A (4-32 VDC Input)

Overview

Meet the SSR-10DA Solid State Relay — the silent, spark-free workhorse for your high-power switching needs. Unlike traditional mechanical relays, this solid-state relay uses semiconductor switching to handle up to 10A with no moving parts, no arcing, and virtually instant response. With a wide 4-32 VDC input range, it's perfect for microcontroller projects, industrial automation, and home automation systems. Whether you're controlling heaters, motors, or lighting, the SSR-10DA delivers reliable, quiet, and long-lasting performance.

Key Features

• 10A Switching Capacity: Handles up to 10 amps, suitable for a wide range of AC loads.
• Zero-Cross Trigger: Minimizes electrical noise and stress on connected devices by switching at the zero point of the AC waveform.
• Wide Input Range: 4-32 VDC input makes it compatible with 5V, 12V, and 24V logic signals from Arduino, Raspberry Pi, PLCs, and more.
• Fast Response: 8.3 ms response time ensures quick and precise switching.
• Solid-State Design: No moving parts, no mechanical wear, and no audible click — perfect for silent operation.
• Easy Wiring: Four screw terminals for straightforward connections.
• Wide Operating Temperature: Functions reliably from -40°C to 80°C.

Technical Specifications

• Input Voltage: 4-32 VDC
• Output Voltage: 24-380 VAC
• Switching Capacity: 10A
• Trigger Current: 12 mA max
• Response Time: 8.3 ms
• Leakage Current: 5 mA
• Turn-off Voltage: < 3.5 VDC
• Operating Temperature: -40°C to 80°C

Applications & Use Cases

• Home Automation: Control lighting, heaters, and appliances with your microcontroller.
• Industrial Control: Interface with PLCs to switch motors, pumps, and conveyor systems.
• 3D Printing & CNC: Manage heated beds, hotends, and spindle controls.
• Energy Management: Switch solar inverters, battery chargers, and power supplies.
• Laboratory & Test Equipment: Reliable switching for experiments and instrumentation.

What's Included

• 1x SSR-10DA Solid State Relay (10A)

Compatibility

• Works with any 4-32 VDC control signal, including 5V and 3.3V logic from Arduino, ESP32, Raspberry Pi, and other microcontrollers.
• Output side connects to 24-380 VAC loads up to 10A.

MOKWN Recommendation

For most hobbyist and professional projects, the SSR-10DA is an excellent choice. If you need higher current handling, consider our SSR-25DA (25A) or SSR-40DA (40A) models. Always ensure your load current does not exceed the relay's rating and use proper heat sinking for continuous high-current operation.
