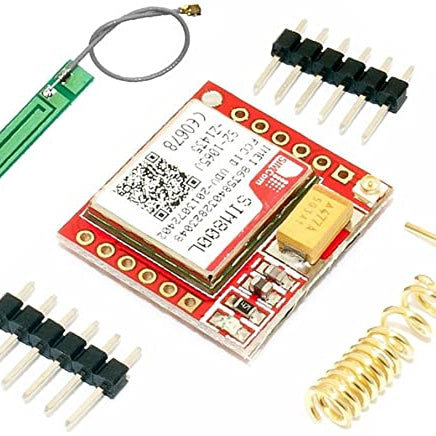

SIM800L GPRS Moduledule

Overview

Bring cellular connectivity to your projects with the SIM800L GPRS Module. This compact module supports quad-band GSM/GPRS (850/900/1800/1900 MHz), enabling voice calls, SMS, and data transmission. Perfect for IoT applications, remote monitoring, and location tracking, it integrates seamlessly with Arduino, Raspberry Pi, and other microcontrollers.

Key Features

• Quad-Band Support: Operates on 850/900/1800/1900 MHz for global compatibility.
• Voice & SMS: Make calls and send text messages directly from your project.
• GPRS Data: Connect to the internet via GPRS for IoT applications.
• Low Power Consumption: Ideal for battery-powered projects with sleep modes.
• UART Interface: Simple serial communication with microcontrollers.
• Compact Size: Small footprint for easy integration.

Technical Specifications

• Frequency Bands: 850/900/1800/1900 MHz (Quad-band)
• GPRS Multi-slot Class: 12
• GPRS Mobile Station Class: B
• Operating Voltage: 3.4V - 4.4V (recommended 3.7V)
• Peak Current: up to 2A (during transmission)
• Interface: UART (TTL level)
• SIM Card: 2G SIM (micro SIM)
• Antenna: External via IPX connector
• Operating Temperature: -40°C to +85°C
• Dimensions: Approx. 25.4mm x 25.4mm

Applications & Use Cases

• IoT Devices: Connect sensors and actuators to the internet via GPRS.
• Remote Monitoring: Track environmental data, equipment status, or vehicle location.
• SMS Alerts: Get notifications or send commands via text messages.
• GPS Tracking: Combine with a GPS module for real-time location tracking.
• Smart Agriculture: Monitor soil moisture, weather, and irrigation systems.

What's Included

• 1x SIM800L GPRS Module
• 1x IPX antenna (may vary; if not included, a separate antenna is required)
• (Note: SIM card not included)

Compatibility

• Microcontrollers: Arduino, Raspberry Pi, ESP32, STM32, and any with UART.
• Operating Voltage: Ensure logic level compatibility (3.3V or 5V with level shifter).
• Power Supply: Requires a stable 3.7V-4.2V supply capable of 2A peak current; a Li-ion battery or dedicated power module is recommended.

MOKWN Recommendation

For reliable GSM/GPRS connectivity in Egypt, the SIM800L is a cost-effective choice. Ensure you have a 2G network coverage (or 2G fallback) in your area. Use a proper power supply and antenna for optimal performance. Pair it with our range of microcontrollers and sensors to build powerful IoT solutions.
