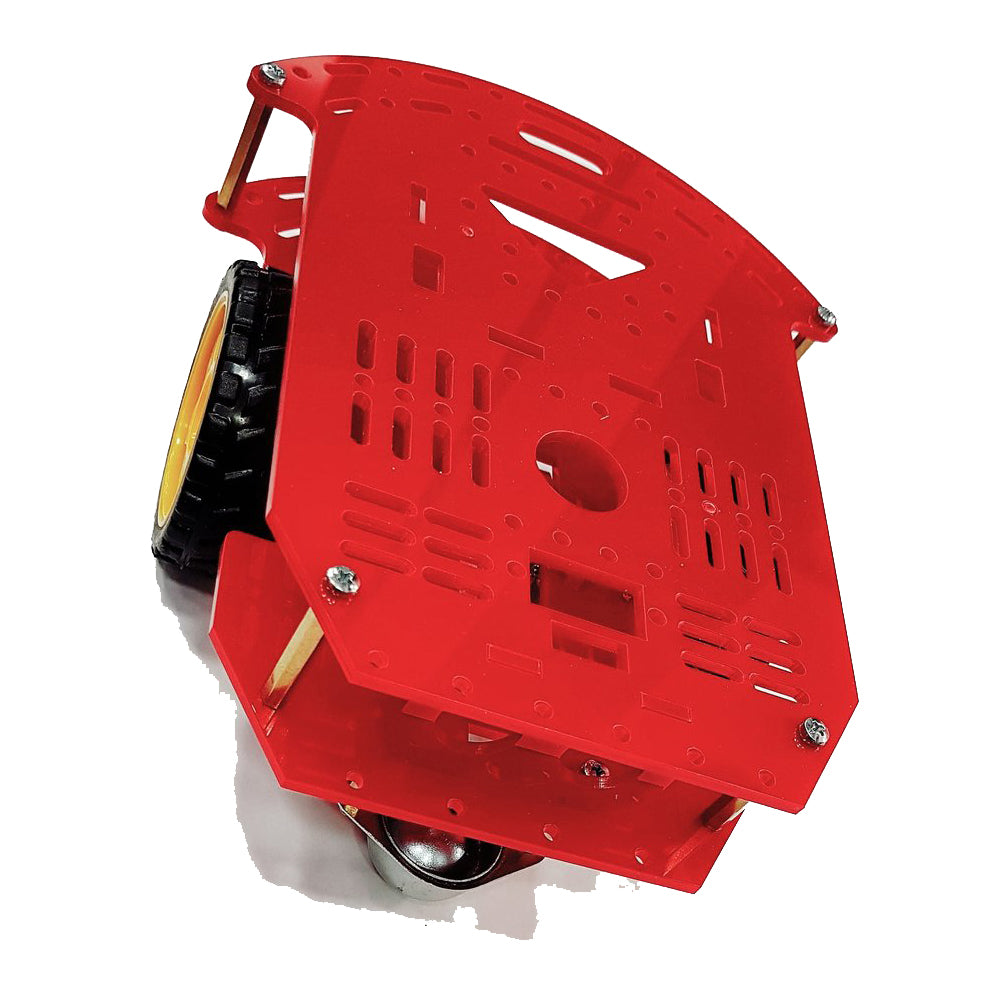

Chassis Robot Platform (2 Gear Motors + 2 Wheels + Castor)

Overview

Build your own mobile robot with the MOKWN Chassis Robot Platform. This complete kit includes a sturdy acrylic chassis, two gear motors, two 65mm wheels, and a ball caster, giving you everything you need to construct a two-wheel differential drive robot. Pre-drilled holes make mounting your microcontroller, sensors, and other components effortless.

Key Features

• Complete Platform: Includes chassis, 2 gear motors, 2 wheels, and a caster.
• Sturdy Acrylic Chassis: Durable and lightweight, with pre-drilled mounting holes.
• High Torque Gear Motors: 800 gf.cm torque for reliable movement.
• 65mm Diameter Wheels: Provide good traction and stability.
• Easy to Assemble: All necessary mounting hardware is included.

Technical Specifications

• Motor Voltage: 6V DC (max)
• No Load Speed: 90 ± 10 RPM
• No Load Current: 190mA (max 250mA)
• Stall Current: ~1A
• Torque: 800 gf.cm
• Wheel Diameter: 65mm (30mm wide)

Applications & Use Cases

• Educational Robotics: Perfect for STEM learning and university projects.
• DIY Robots: Build line followers, obstacle avoiders, or remote-controlled robots.
• Prototyping: Ideal base for testing algorithms and sensors.
• Hobby Projects: Great for makers and hobbyists.

What's Included

• 1x Acrylic chassis plate
• 2x Gear motors
• 2x 65mm wheels
• 1x Ball caster
• Mounting screws and nuts

Compatibility

Works with most microcontrollers like Arduino, Raspberry Pi, and ESP32. Compatible with motor driver shields such as L298N, L293D, and TB6612FNG. Use with MOKWN sensors and modules to create advanced projects.

MOKWN Recommendation

This chassis is ideal for beginners and experienced makers alike. Pair it with our Arduino starter kits and motor drivers to get started quickly. For a complete robot, consider adding an ultrasonic sensor and a servo for obstacle avoidance. Order now and start building!
