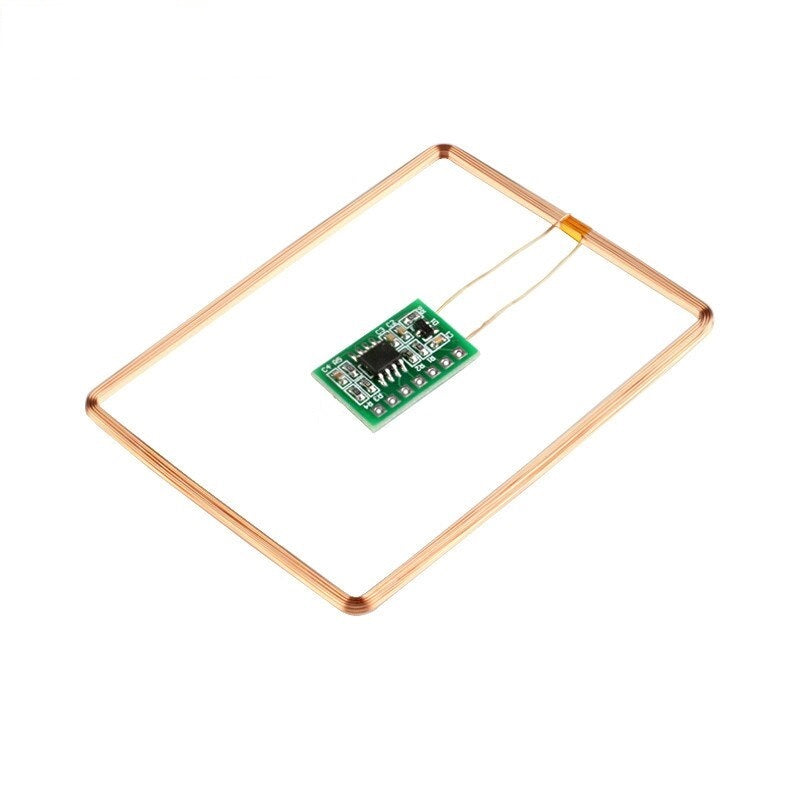

RFID Reader (125Khz - UART)

Overview

Unlock the potential of RFID technology with the MOKWN 125kHz RFID Reader Module. This compact and efficient reader is engineered for seamless integration with Arduino and other microcontroller platforms. Whether you're building an access control system, an attendance tracker, or a smart identification project, this module provides reliable, low-cost RFID reading capabilities. With a UART TTL interface, it's incredibly easy to connect and use, making it a staple for makers, students, and engineers in Egypt.

Key Features

• 125kHz RFID Reading: Specifically designed to read 125kHz RFID tags (EM4100, TK4100, and compatible).
• UART TTL Interface: Simple 4-pin connection (VCC, GND, TX, RX) for direct communication with microcontrollers.
• Wide Voltage Compatibility: Operates on 3-5V, making it compatible with both 3.3V and 5V logic systems.
• Effective Range: Reads tags from up to 7cm, suitable for close-proximity applications.
• Compact Design: Small footprint ideal for embedding into custom projects.
• Easy Integration: Works with Arduino libraries and example codes for quick prototyping.

Technical Specifications

• Operating Voltage: 3-5V DC
• Interface: UART TTL (TX, RX)
• Frequency: 125kHz
• Read Distance: Up to 7cm (depending on tag and environment)
• Supported Tags: EM4100, TK4100, and compatible 125kHz tags
• Dimensions: Compact module (exact size may vary)

Applications & Use Cases

• Access Control: Build a secure door lock system that opens with a valid RFID card.
• Attendance Systems: Track student or employee attendance with a simple tap.
• Identification Projects: Create ID badges for events or clubs.
• Smart Lockers: Implement a locker system that opens with a key fob.
• Automation & IoT: Integrate with home automation or industrial systems for user identification.
• Educational Projects: Teach RFID technology in schools and universities.

What's Included

• 1x RFID Reader Module (125kHz, UART)
• (Note: RFID tags are not included but can be purchased separately from MOKWN)

Compatibility

• Microcontrollers: Arduino (Uno, Mega, Nano, etc.), Raspberry Pi (via UART), ESP8266, ESP32, STM32, and other 3.3V/5V logic devices.
• Operating Systems: Works with any system that supports serial communication (e.g., Arduino IDE, Python, Node.js).
• Tags: Compatible with 125kHz RFID cards, key fobs, and stickers (e.g., EM4100, TK4100).

MOKWN Recommendation

This RFID Reader is an excellent choice for hobbyists and professionals alike. For a complete setup, we recommend pairing it with a set of 125kHz RFID cards or key fobs available in our store. For beginners, check out our Arduino starter kits and tutorials to get started. For advanced projects, consider using an ESP32 for wireless integration. If you have any questions, our team in Egypt is ready to assist you.
