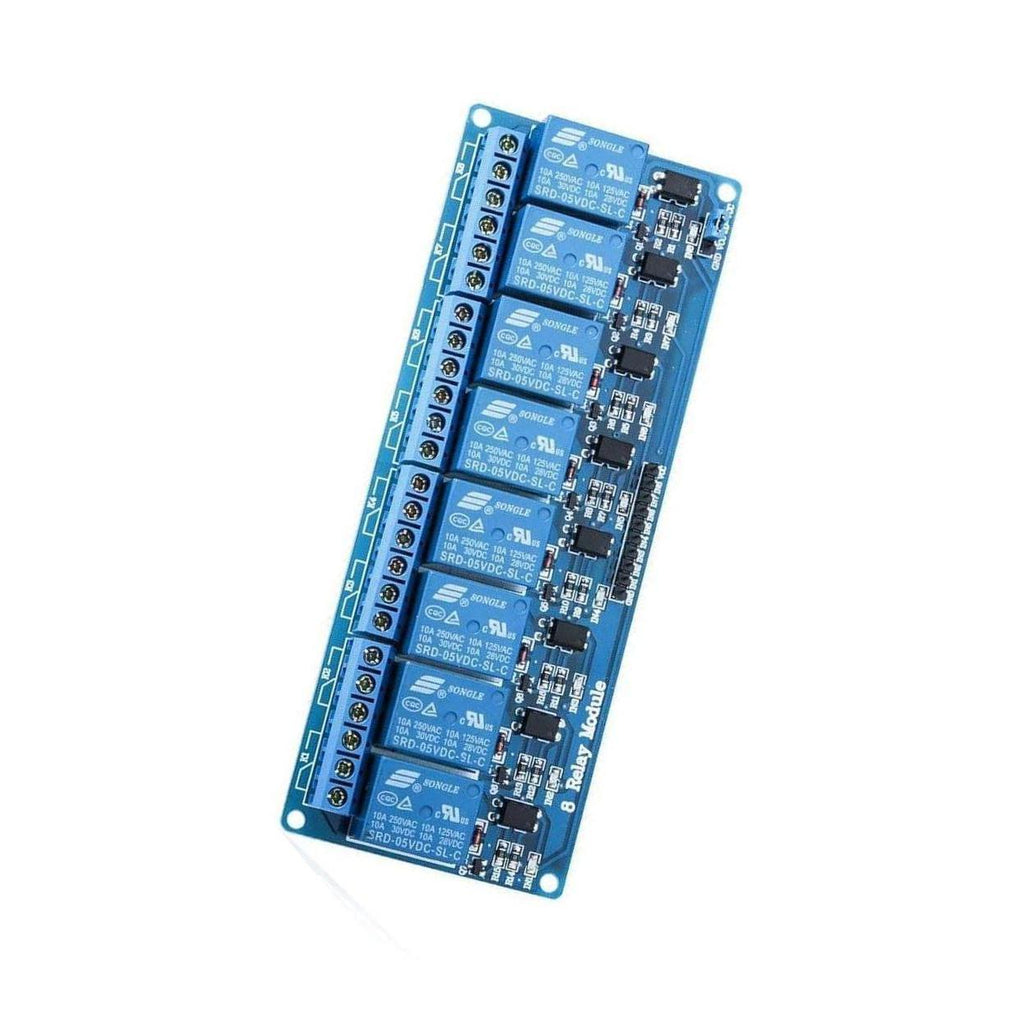

8 Channel 5V Relay Module

Overview

Take control of up to eight high-voltage devices with the MOKWN 8-Channel 5V Relay Module. This powerful relay board lets your microcontroller—whether it's an Arduino, ESP32, ESP8266, Raspberry Pi, STM32, or PIC—switch AC or DC loads independently. Each relay is rated for 10A at 250VAC or 30VDC, making it perfect for home automation, industrial control, robotics, and IoT projects. With optocoupler isolation, LED indicators, and screw terminals, this module delivers safe, reliable, and easy-to-use switching for makers and professionals alike.

Key Features

• 8 Independent Relays: Control up to eight separate devices with individual switching.
• High Load Capacity: Each relay handles up to 10A at 250VAC or 30VDC.
• Optocoupler Isolation: Protects your microcontroller from voltage spikes and noise.
• LED Status Indicators: Visual feedback for each relay's state.
• Screw Terminal Connectors: Secure and convenient wiring for high-voltage connections.
• Wide Compatibility: Works with Arduino, ESP32, ESP8266, Raspberry Pi, STM32, AVR, PIC, and more.
• TTL Logic Compatible: Directly controlled by 5V logic without additional drivers.
• NO/NC Contacts: Both normally open and normally closed options for flexible circuit design.

Technical Specifications

• Control Voltage: 5V DC
• Relay Contact Rating: 10A @ 250VAC / 10A @ 30VDC
• Output Contacts: NO (Normally Open), NC (Normally Closed), COM (Common)
• Control Interface: TTL Logic Compatible (5V)
• LED Indicators: 8 (one per relay)
• Compatibility: Arduino, ESP32, ESP8266, Raspberry Pi, STM32, AVR, PIC, and other microcontrollers

Applications & Use Cases

• Home Automation: Control lights, fans, and appliances remotely.
• Industrial Control: Manage motors, pumps, and solenoid valves.
• Robotics: Switch actuators and high-power components.
• IoT Projects: Build smart devices that control AC/DC loads.
• Smart Buildings: Automate lighting, HVAC, and security systems.
• Educational Projects: Ideal for learning relay control and power switching.

What's Included

• 1x 8-Channel 5V Relay Module
• (Screw terminals are pre-installed; no extra cables included)

Compatibility

This module is compatible with virtually any microcontroller that provides 5V TTL logic, including Arduino, ESP32, ESP8266, Raspberry Pi (with level shifter), STM32, PIC, AVR, and more. Simply connect the VCC, GND, and 8 control pins to your board.

MOKWN Recommendation

For reliable multi-device control, this 8-channel relay module is a top choice. Ensure your power supply can handle the total current draw of the relay coils (typically ~70mA per relay). If you're controlling AC loads, always follow safety guidelines and use proper enclosures. For most projects, we recommend pairing this with an Arduino Uno or ESP32 for easy integration. Order now and bring your automation ideas to life!
