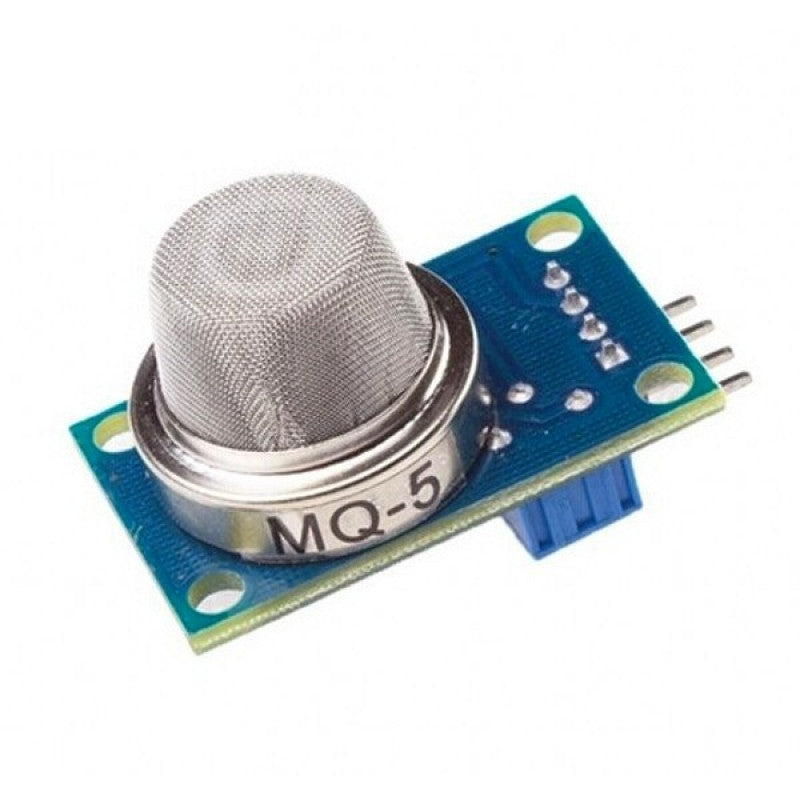

Natural Gas Sensor MQ5 (Analog/Digital)

Overview

The MQ5 Natural Gas Sensor is a highly sensitive and reliable gas detection module designed to identify the presence of natural gas, LPG, and methane in the surrounding environment. It is an essential component for building safety and environmental monitoring systems, making it a staple for hobbyists, students, and professionals working with Arduino, Raspberry Pi, and other microcontroller platforms. With both analog and digital outputs, this sensor provides flexible integration options for a wide range of projects, from simple gas leak alarms to sophisticated air quality monitoring stations.

Key Features

• Dual Outputs: Provides both analog (Aout) and digital (Dout) output signals, allowing for precise measurement or simple threshold-based detection.
• High Sensitivity: Effectively detects natural gas, LPG, and methane with a fast response time.
• Adjustable Sensitivity: Onboard potentiometer allows you to set the digital output trigger threshold according to your application needs.
• Wide Operating Voltage: Operates at 5V DC, making it compatible with standard microcontroller power supplies.
• Compact and Easy to Use: Small form factor with straightforward pin connections, perfect for breadboard and PCB integration.
• Durable Construction: Designed for long-term stable performance in diverse environmental conditions.

Technical Specifications

• Operating Voltage: 5V DC
• Output: Digital (Dout) and Analog (Aout)
• Connections: GND (Ground), VCC (Power), Dout (Digital Output), Aout (Analog Output)
• Detection Gases: Natural Gas, LPG, Methane
• Sensitivity: Adjustable via onboard potentiometer
• Platform Compatibility: Arduino, Raspberry Pi, and other microcontrollers

Applications & Use Cases

• Gas Leakage Alarms: Build a household safety system that alerts you to gas leaks in kitchens or utility rooms.
• Environmental Monitoring: Create a device to monitor air quality in industrial or residential areas.
• Smart Home Automation: Integrate with home automation systems to automatically shut off gas valves or trigger ventilation fans.
• Educational Projects: Ideal for STEM education, teaching students about gas sensors and embedded systems.
• Robotics: Use in robotic systems for gas detection and hazard avoidance.

What's Included

• 1x MQ5 Gas Sensor Module (Analog/Digital)

Compatibility

• Microcontrollers: Arduino Uno, Arduino Mega, Arduino Nano, Raspberry Pi, ESP32, ESP8266, and other 5V/3.3V logic microcontrollers.
• Platforms: Works with Arduino IDE, Python (RPi.GPIO), and other development environments.

MOKWN Recommendation

At MOKWN, we recommend the MQ5 Gas Sensor for anyone looking to add reliable gas detection to their projects. Whether you're a beginner learning about sensors or an engineer developing a safety system, this sensor offers a perfect balance of performance, ease of use, and affordability. Pair it with our range of Arduino boards and relay modules to create a complete gas safety solution. For any questions or support, our team in Egypt is always ready to help you get the most out of your projects.
