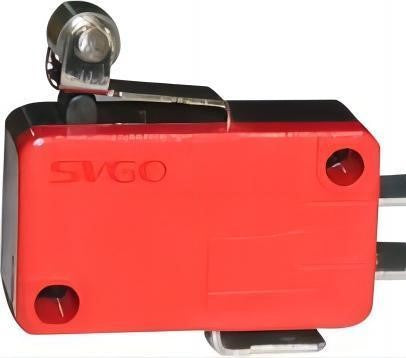

Limit Switch Short Roller Lever

Overview

This Limit Switch with Short Roller Lever is a robust and reliable component designed for precise position sensing and control in industrial automation and DIY electronics projects. It provides accurate detection of mechanical movement, making it essential for limit, safety, and positioning applications. The switch features a compact design with a short roller lever actuator, suitable for tight spaces and applications requiring minimal overtravel.

Key Features

• Versatile Actuator: Short roller lever for reliable operation with cam or sliding mechanisms.
• SPDT Contact: Single Pole Double Throw (Common, Normally Open, Normally Closed) for flexible circuit wiring.
• High Current Rating: Supports up to 16A, suitable for direct control of loads.
• Wide Operating Temperature: Works in environments from -25°C to +85°C.
• Durable Construction: Designed for long mechanical and electrical life.
• Compact and Lightweight: Weighs only 36g, easy to mount in various orientations.

Technical Specifications

• Terminals: Common (COM), Normally Open (NO), Normally Closed (NC)
• Contact Type: SPDT (Single Pole Double Throw)
• Max. Current: 3-16A (depending on voltage)
• Max. Voltage: 250VAC
• Operating Temperature: -25°C to +85°C
• Net Weight: 36g

Applications & Use Cases

• Industrial Automation: Limit detection for conveyor systems, packaging machinery, and automated assembly lines.
• CNC and 3D Printers: End-stop switches for axis homing and safety limits.
• Robotics: Position feedback for robotic arms and grippers.
• Home Automation: Door/window sensors, garage door limits.
• Safety Interlocks: Machine guarding and emergency stop circuits.
• Educational Projects: Ideal for electronics and mechatronics labs.

What's Included

• 1x Limit Switch with Short Roller Lever (SPDT)
• Mounting hardware (screws/nuts) may be included depending on package; check product listing.

Compatibility

• Works with any microcontroller (Arduino, Raspberry Pi, ESP32) using digital input pins with pull-up or pull-down resistors.
• Can be used in 3D printer control boards (e.g., RAMPS, SKR) as end-stop switches.
• Compatible with industrial PLCs and relay circuits.

MOKWN Recommendation

This limit switch is a must-have for makers and engineers in Egypt working on automation projects. Its high current rating and SPDT configuration make it a versatile choice for both educational and industrial applications. Pair it with our range of microcontrollers and relay modules to build robust control systems. Order now and enjoy fast delivery across Egypt!
