Joystick Module (4 Directions)

Overview

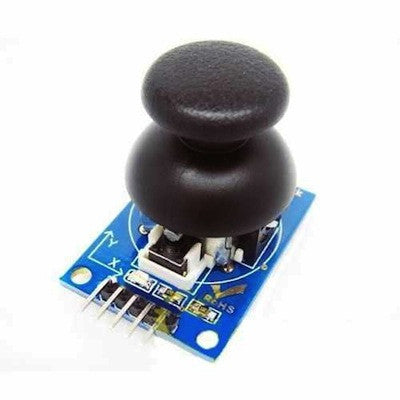

Take control of your next project with the Joystick Module (4 Directions) from MOKWN. This compact and versatile input device provides precise analog control in two axes (X and Y) along with a digital push-button switch. Whether you're building a robot, a game controller, or an interactive installation, this joystick module offers an intuitive and responsive interface for your microcontroller projects.

Key Features

• Dual-Axis Analog Control: Outputs variable voltage levels on the X and Y axes, allowing for precise proportional control.
• Integrated Push-Button: Includes a digital switch activated by pressing down on the joystick, adding an extra input option.
• Easy to Interface: Standard analog and digital pins make it compatible with most microcontrollers (Arduino, ESP32, Raspberry Pi, etc.).
• Compact Design: Lightweight and small footprint, perfect for handheld devices and embedded projects.
• Durable Construction: Built to withstand frequent use and repetitive movements.

Technical Specifications

• Operating Voltage: 3.3V - 5V DC
• Output Signal: Analog (X, Y) + Digital (SW)
• X-Axis Output: 0V - VCC (typically 0V to 3.3V or 5V)
• Y-Axis Output: 0V - VCC
• Switch Output: Digital (LOW when pressed, HIGH when released)
• Dimensions: Approximately 32mm x 25mm x 18mm
• Weight: ~10g
• Connector: 5-pin header (GND, VCC, VRx, VRy, SW)

Applications & Use Cases

• Robotics: Control robot movement, camera gimbals, or servo arms.
• Gaming: Build custom game controllers or arcade-style interfaces.
• Remote Controls: Create wireless or wired remote controls for drones, cars, or home automation.
• Interactive Art: Add user input to installations and exhibits.
• Educational Projects: Teach analog-to-digital conversion and user interface design.

What's Included

• 1x Joystick Module (4 Directions)
• 1x 5-pin header (may be pre-soldered or loose depending on batch)

Compatibility

• Microcontrollers: Arduino (Uno, Mega, Nano), ESP32, ESP8266, Raspberry Pi (with ADC), STM32, PIC, and more.
• Software: Works with Arduino IDE, MicroPython, CircuitPython, and other programming environments.
• Power: Operates on 3.3V or 5V logic, making it compatible with both 3.3V and 5V systems.

MOKWN Recommendation

For Egyptian makers, students, and engineers, this Joystick Module is an essential component for any interactive project. Its simplicity and versatility make it ideal for beginners and experts alike. Pair it with an Arduino Uno or ESP32 from our store to get started immediately. We recommend using jumper wires for quick prototyping and a breadboard for testing. With fast delivery across Egypt and reliable quality, MOKWN is your trusted partner for all your electronics needs.
