Infrared Carbon Heating Film (160Watt/mý- 50x25cm)

Overview

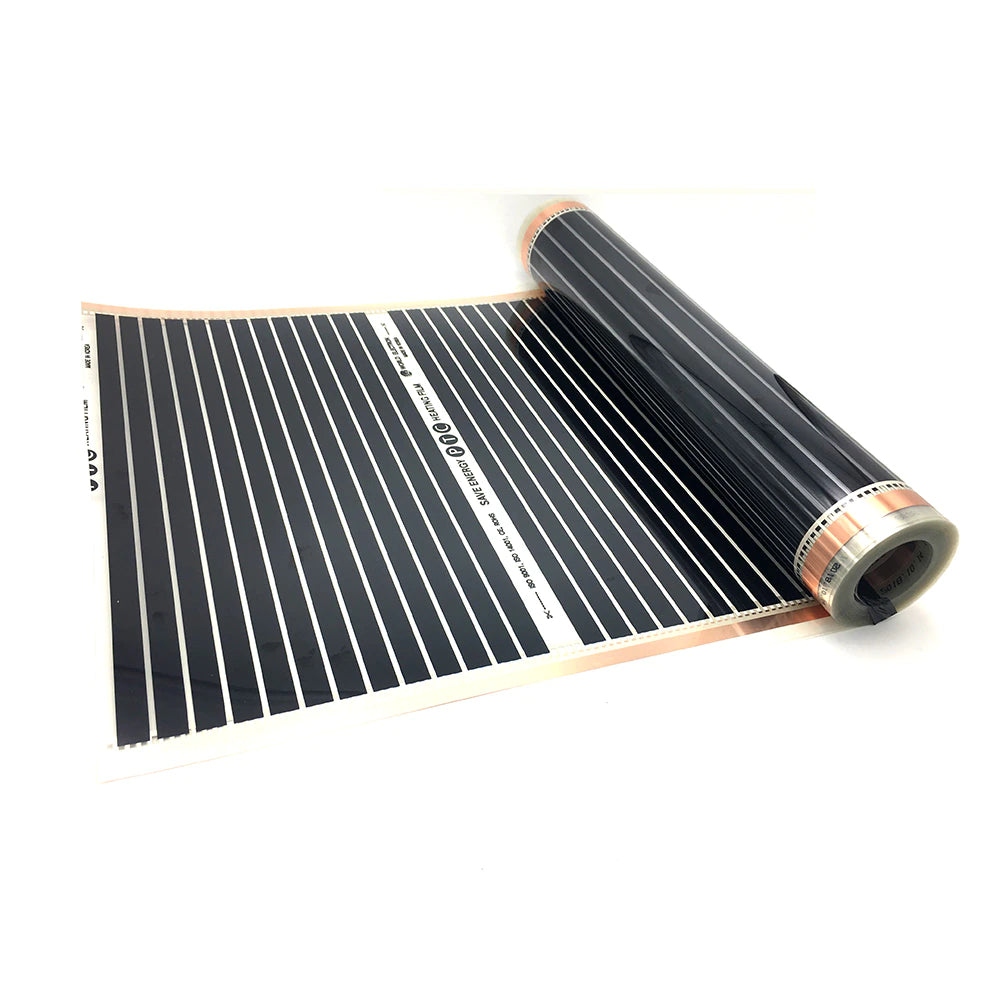

Introducing the MOKWN Infrared Carbon Heating Film (160W/m² – 50x25cm) – a versatile, energy-efficient heating solution engineered for DIY enthusiasts, engineers, and innovators. This advanced carbon film emits far-infrared radiation, delivering uniform, comfortable warmth with minimal energy consumption. Whether you're building a custom underfloor heating system, a reptile terrarium heater, or an industrial process heater, this film offers precise, adjustable heat in a slim, flexible format.

Key Features

• High Efficiency: Generates 160W per square meter, providing rapid and consistent heat.
• Far-Infrared Radiation: Emits healthy, penetrating warmth that warms objects and people directly, not just the air.
• Ultra-Slim & Flexible: At just 0.3mm thick, it can be easily integrated into floors, walls, or curved surfaces.
• Uniform Heat Distribution: Carbon heating elements ensure even temperature across the entire film surface.
• Safe & Eco-Friendly: No electromagnetic field interference, no noise, and environmentally friendly operation.
• Easy to Cut & Customize: Can be trimmed to fit specific dimensions (do not cut through heating elements).
• Wide Voltage Compatibility: Works with 110V-240V AC (requires appropriate controller).

Technical Specifications

• Model: Infrared Carbon Heating Film
• Power Density: 160W/m²
• Dimensions: 50cm x 25cm (0.125 m²)
• Total Power: ~20W per film (at rated voltage)
• Thickness: 0.3mm
• Voltage: 110V-240V AC (with proper controller)
• Operating Temperature: Up to 60°C (surface temperature)
• Wavelength: 5-20μm (far-infrared)
• Cuttable: Yes (along marked lines)
• Lifespan: 50,000+ hours

Applications & Use Cases

• Underfloor Heating: Perfect for residential and commercial floor heating systems.
• DIY Projects: Ideal for custom heating pads, food warmers, or heated seats.
• Industrial Processes: Used in thermoforming, lamination, and drying applications.
• Agriculture & Horticulture: Soil warming for seedling trays or greenhouse heating.
• Animal Care: Terrarium heating for reptiles, brooders for chicks, or pet warming pads.
• Medical & Wellness: Heat therapy pads for pain relief.

What's Included

• 1x Infrared Carbon Heating Film (50x25cm)
• Connection wires (pre-attached)
• Insulation tape (for cut edges)
• Instruction manual (English)

Compatibility

• Works with standard AC power supplies (110V-240V) when paired with a compatible temperature controller (sold separately).
• Can be used with MOKWN's range of temperature controllers and thermostats for precise heat management.
• Suitable for integration with Arduino or Raspberry Pi projects for automated heating systems.

MOKWN Recommendation

For optimal performance and safety, we recommend using a temperature controller or thermostat to regulate the heating film. This allows you to set desired temperatures, prevent overheating, and save energy. Whether you're a hobbyist or a professional, this heating film is a reliable and cost-effective choice for your heating needs. Order today and experience the MOKWN difference – quality components, fast delivery across Egypt, and dedicated support.
