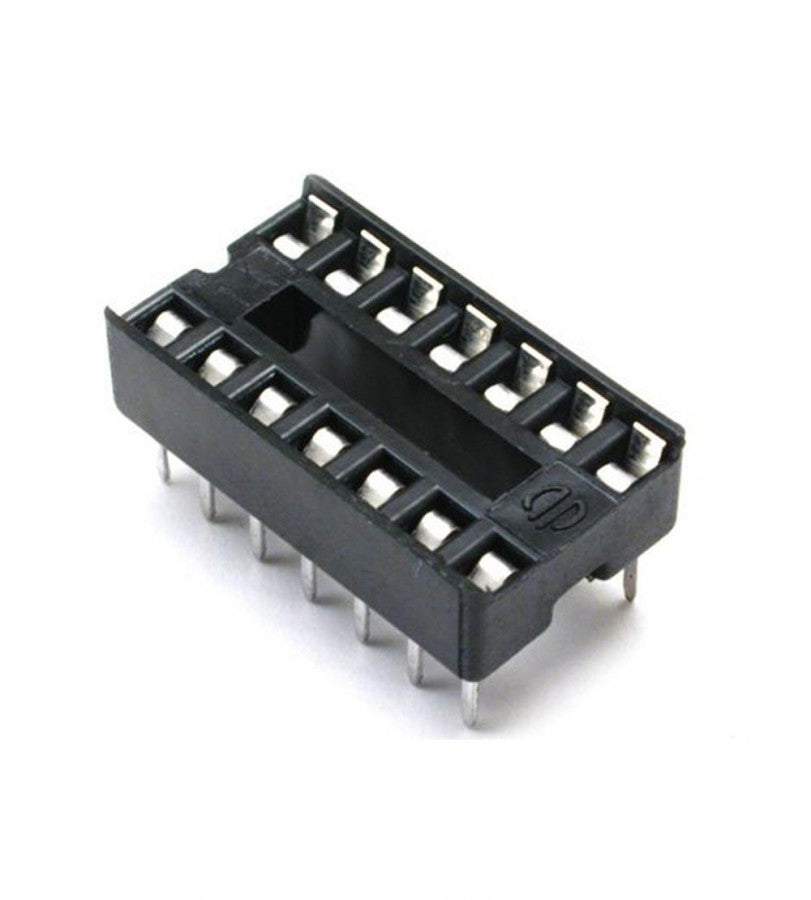

IC SOCKET Base 14 PIN DIP

Overview

Protect your valuable ICs and simplify your prototyping workflow with the IC Socket Base 14 Pin DIP from MOKWN. This high-quality socket provides a secure, reliable connection for 14-pin Dual In-line Package (DIP) integrated circuits, allowing you to insert and remove chips without soldering directly to them. Whether you're a student learning electronics, a hobbyist building a project, or an engineer developing a prototype, this socket is an indispensable tool for any workbench.

Key Features

• Secure IC Retention: The precision-machined contacts firmly grip the IC pins, ensuring a stable and reliable electrical connection.
• Easy Insertion and Removal: Swap out ICs quickly and safely for testing, programming, or replacement without the risk of damaging the chip or the PCB.
• Durable Construction: Made from high-temperature-resistant materials (typically PBT or similar), it withstands repeated use and soldering processes.
• Standard 14-Pin DIP Layout: Conforms to standard 0.1-inch (2.54mm) pitch spacing, compatible with a wide range of common ICs.
• Versatile Use: Ideal for breadboard adaptation, PCB mounting, and creating replaceable components in your designs.

Technical Specifications

• Number of Pins: 14
• Package Type: DIP (Dual In-line Package)
• Pitch: 2.54mm (0.1 inch)
• Mounting Type: Through-hole (solderable)
• Contact Material: High-quality copper alloy (typically tin-plated)
• Insulator Material: High-temperature plastic (e.g., PBT, UL94V-0 rated)
• Operating Temperature: -40°C to +125°C (typical)
• Contact Resistance: ≤ 30mΩ (typical)
• Insulation Resistance: ≥ 1000MΩ (at 500V DC)
• Withstanding Voltage: 1000V AC (for 1 minute)

Applications & Use Cases

• Prototyping: Perfect for breadboard and perfboard projects where you need to test different ICs without soldering them directly.
• PCB Design: Mount sockets on your PCBs to make ICs replaceable for easy upgrades or maintenance.
• Educational Kits: An essential component for electronics training kits and university labs.
• Microcontroller Projects: Use with 14-pin microcontrollers, op-amps, timers (like the NE555), and other common ICs.
• Repair and Servicing: Replace damaged ICs without damaging the PCB traces.

What's Included

• 1x IC Socket Base 14 Pin DIP

Compatibility

• Compatible with any 14-pin DIP IC, including popular chips such as:
• LM324 (Quad Op-Amp)
• LM358 (Dual Op-Amp)
• CD4017 (Decade Counter)
• NE555 (Timer)
• ATmega328P (in DIP package) and many more.
• Works with standard breadboards and PCBs with 2.54mm pitch holes.

MOKWN Recommendation

Always use a socket for ICs that you plan to reuse or that are expensive to replace. This IC socket base is a must-have for every electronics enthusiast in Egypt. It ensures your ICs remain safe from heat damage during soldering and allows for quick swaps during testing. Add this to your cart today and build with confidence!
