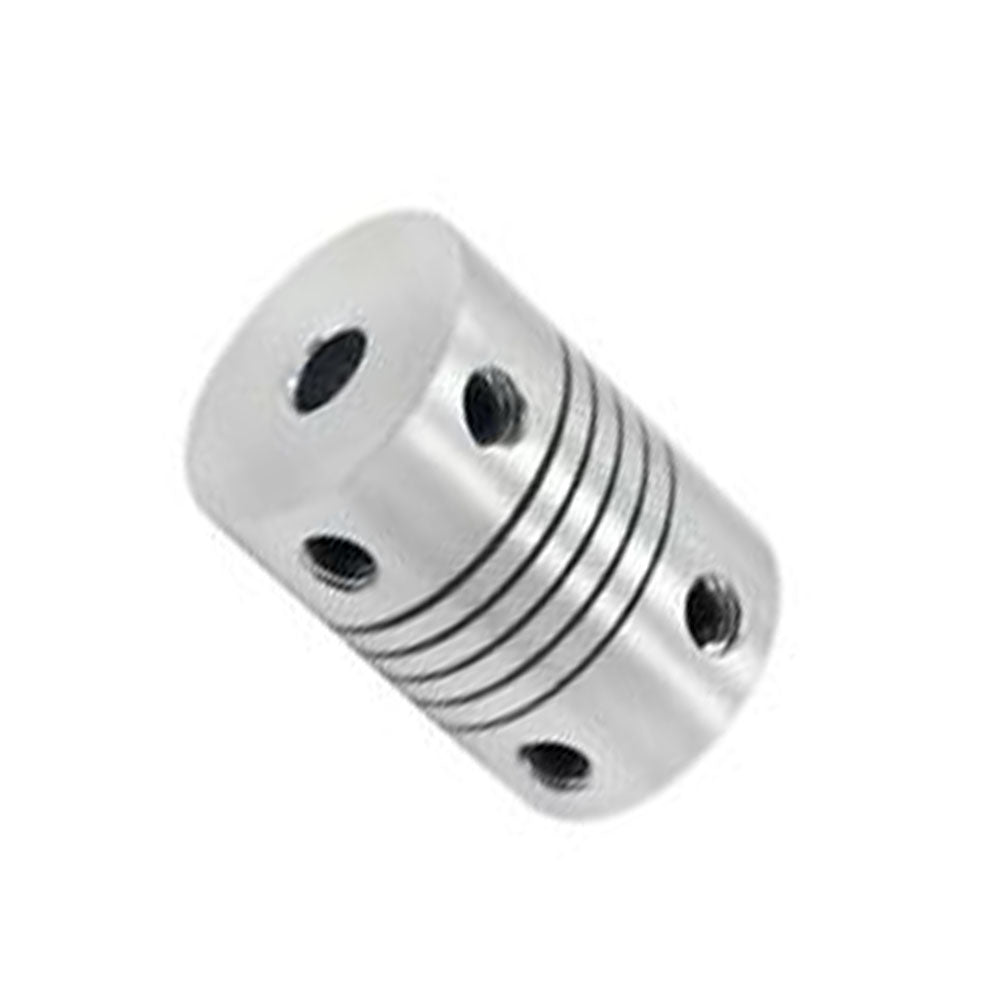

Flexible Coupler (5mm to 6.5mm)

Overview

This flexible coupler is an essential component for connecting a 5mm motor shaft to a 6.5mm shaft in your mechanical projects. Its spiral-cut design provides flexibility, effectively accommodating minor misalignments that can occur during assembly or operation. Whether you're building a CNC machine, a robotic arm, or any precision-driven project, this coupler ensures reliable torque transmission while reducing stress on connected components.

Key Features

• Flexible Spiral Design: The spiral cut allows for slight angular, parallel, and axial misalignment, reducing wear on motors and shafts.
• Secure Connection: Includes two sets of set screws to firmly lock the coupler onto both shafts.
• Versatile Sizing: Specifically designed to connect a 5mm shaft to a 6.5mm shaft, common in NEMA motors and lead screws.
• Durable Construction: Made from high-quality aluminum alloy, offering strength and corrosion resistance.
• Easy Installation: Simple to mount with basic tools; no special equipment required.

Technical Specifications

• Bore Diameter 1: 5mm
• Bore Diameter 2: 6.5mm
• Material: Aluminum Alloy
• Type: Flexible Coupler with Spiral Cut
• Screw Type: Set Screws (2 sets included)
• Compatible Shafts: 5mm and 6.5mm round shafts

Applications & Use Cases

• CNC Routers & Mills: Connect stepper motors to lead screws or ball screws.
• 3D Printers: Link motors to threaded rods for Z-axis movement.
• Robotics: Join motor shafts to gearboxes or wheels.
• Automation Systems: Transfer motion between motors and shafts with misalignment tolerance.
• DIY Projects: Ideal for hobbyists and makers requiring reliable shaft coupling.

What's Included

• 1x Flexible Coupler (5mm to 6.5mm)
• 2 sets of set screws (Allen keys not included)

Compatibility

• Works with any 5mm motor shaft and 6.5mm driven shaft.
• Commonly used with NEMA 17 and NEMA 23 stepper motors (with 5mm shafts) and lead screws with 6.5mm diameter.

MOKWN Recommendation

This flexible coupler is a must-have for precision motion projects. Its ability to compensate for misalignment prolongs the life of your motors and shafts, ensuring smooth and accurate operation. For best results, use with high-quality stepper motors and lead screws available at MOKWN. Order now to keep your builds running seamlessly!
