DT9205A Digital Multimeter Basic Model MT-1000

Overview

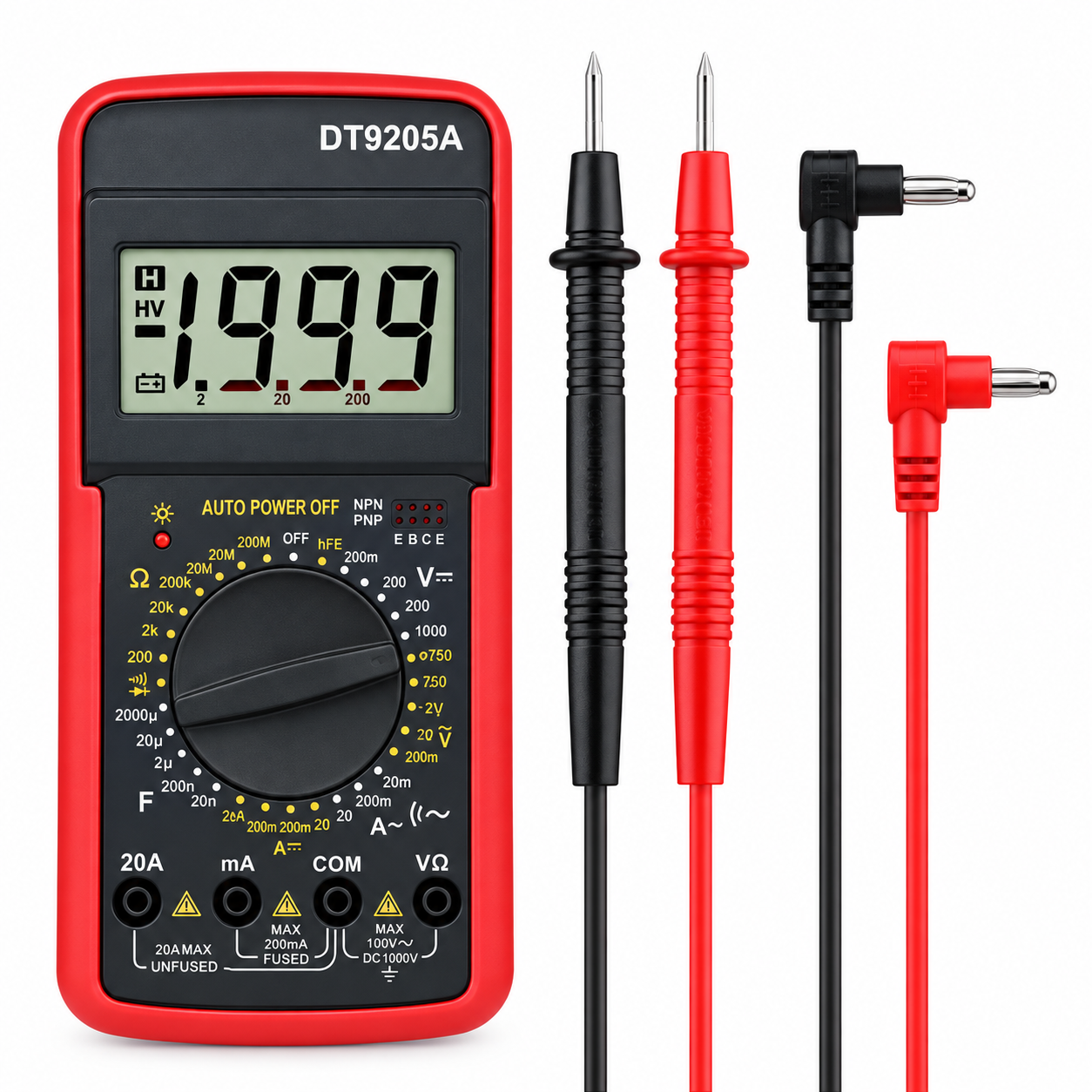

The DT9205A Digital Multimeter (MT-1000 Series) is an all-around, feature-packed electronic testing instrument engineered for electronics students, makers, appliance technicians, and automotive hobbyists. Equipped with an oversized 3½ digit high-contrast LCD display that tilts for optimal workbench visibility, the DT9205A covers every essential electronic measurement: AC/DC Voltage up to 750V/1000V, DC and AC Current up to 20 Amperes, Resistance up to 200 MΩ, Capacitance up to 200 µF, diode testing, transistor hFE gain checking, and an instant-response audible continuity beeper. Encased in a shock-absorbing yellow protective holster with probe storage slots, it combines reliable workshop performance with remarkable value.

Key Features

• Large Adjustable Tilting LCD: Extra-large digits ensure clear readability from across the workbench; screen tilts upward for seated lab viewing.
• High-Current 20A Measurement: Dedicated fused 20A terminal accommodates testing high-draw motor controllers, battery packs, and power inverters.
• Built-in Capacitance Meter: Directly measures capacitor values from 20nF to 200µF without requiring an expensive standalone LCR meter.
• Instant Audible Continuity Buzzer: Low-resistance buzzer sounds crisply to detect open circuits, broken traces, and cold solder joints in seconds.
• Transistor hFE & Diode Testing: Onboard multi-pin socket tests NPN and PNP transistor amplification factor (hFE) and forward voltage drop of LEDs and diodes.
• Protective Shockproof Holster: Thick non-slip rubberized casing shields the instrument against accidental workbench drops and knocks.

Technical Specifications

• DC Voltage: 200mV / 2V / 20V / 200V / 1000V (Accuracy: ±0.5% + 2)
• AC Voltage: 200mV / 2V / 20V / 200V / 750V (Accuracy: ±0.8% + 3)
• DC Current: 2mA / 20mA / 200mA / 20A (Accuracy: ±1.2% + 2)
• AC Current: 2mA / 20mA / 200mA / 20A (Accuracy: ±1.8% + 3)
• Resistance: 200Ω / 2kΩ / 20kΩ / 200kΩ / 2MΩ / 20MΩ / 200MΩ
• Capacitance: 20nF / 200nF / 2µF / 20µF / 200µF
• Overload Protection: Internal fuse protection on milliamp and standard ranges
• Power Supply: 1 × 9V 6F22 Battery (included in box)
• Dimensions: 190 mm × 90 mm × 35 mm
• Weight: ~310 grams

Applications & Use Cases

• Electronics Workbench Prototyping: Verifying breadboard voltage rails, checking resistor values, and confirming diode orientations.
• Circuit Debugging: Buzzing continuity between microcontroller pins and shield sockets to discover shorts or cold solder joints.
• Power Supply & Battery Health Checks: Measuring open-circuit and load voltages on 18650 lithium cells, lead-acid batteries, and DC adapters.
• Automotive & Motorcycle Wiring: Diagnosing alternator output, tracing blown automotive fuses, and checking relay coils.
• Home Electrical Troubleshooting: Testing AC wall socket voltages, appliance heating elements, and continuity in extension cords.

What's Included

• 1 × DT9205A Digital Multimeter
• 1 × Pair of Heavy-Duty Red/Black Shrouded Test Lead Probes
• 1 × Protective Yellow Rubber Holster
• 1 × 9V Battery (Pre-installed or included in box)
• 1 × User Instruction Manual

Compatibility

• Accessories: Standard 4mm banana jack sockets accept all commercial multimeter probes, alligator clips, and SMD tweezers.

MOKWN Recommendation

The DT9205A is by far the most popular and recommended multimeter for university engineering students and makers starting their electronics journey in Egypt. Having capacitance testing and 20A current range on a sub-400 EGP meter is incredible value. Keep it on your desk, and you'll find yourself reaching for its continuity buzzer and voltage dial every single day. Delivered right to your doorstep anywhere in Egypt with cash on delivery from MOKWN!
