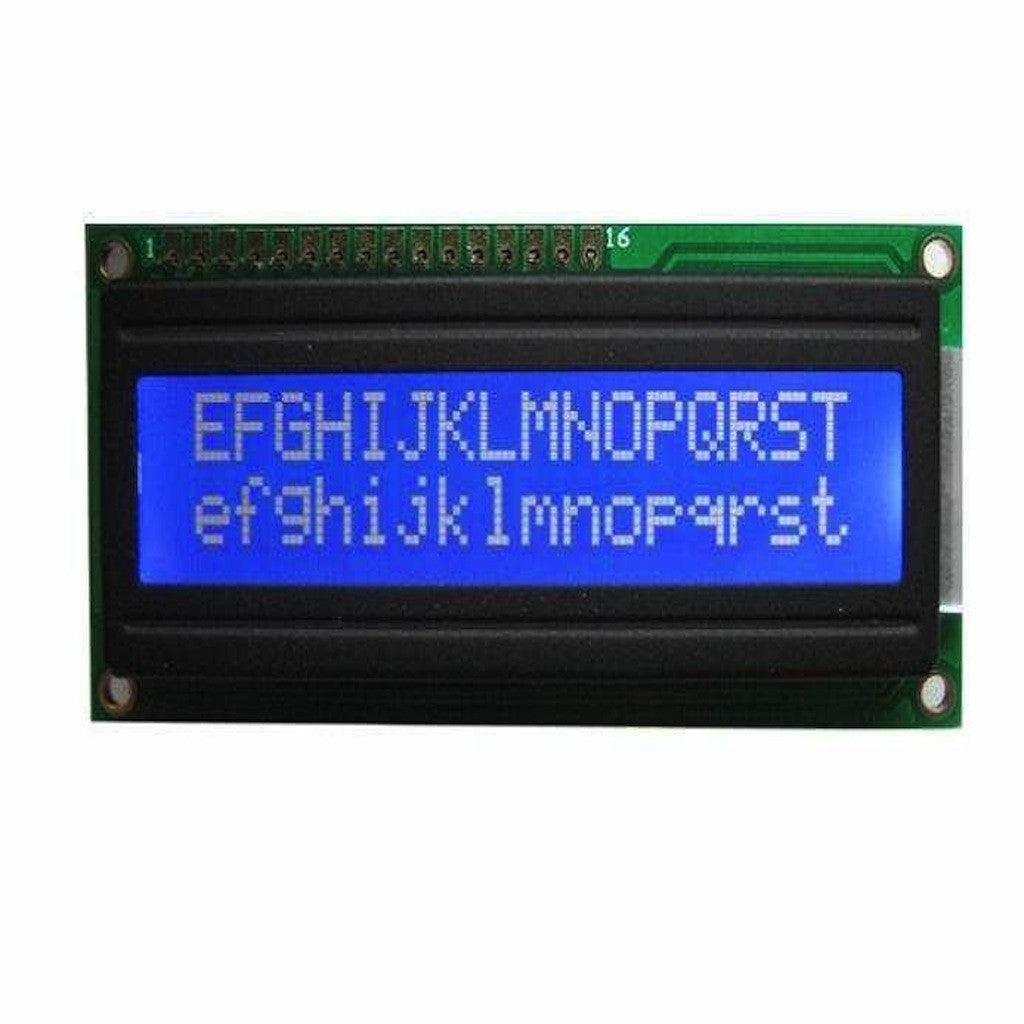

Character LCD Module 16 char.x2 lines

Overview

The Character LCD Module 16x2 is a versatile and reliable display solution for a wide range of electronics projects. With its ability to display 16 characters across 2 lines, it provides a clear and straightforward way to present text-based information, making it an essential component for hobbyists, students, and professionals alike. Whether you're building a weather station, a digital clock, or a user interface for your latest Arduino project, this LCD module offers a simple and effective method to communicate data and feedback.

Key Features

• 16x2 Character Display: Shows up to 32 characters at once (16 per line), perfect for text-based interfaces.
• Standard HD44780 Interface: Compatible with a vast array of libraries and controllers, including Arduino, Raspberry Pi, and many others.
• KS0066U Controller: Ensures reliable performance and easy integration with minimal external components.
• Wide Viewing Area: 64.5x13.8mm viewing area with a clear, high-contrast display for readability in various lighting conditions.
• Compact Design: Slim outline size of 80x36x12mm, ideal for space-constrained projects.
• Easy to Use: Simple parallel interface with optional backlight (not included) and contrast adjustment via a potentiometer.

Technical Specifications

• Display Format: 16 characters x 2 lines
• Controller: KS0066U (compatible with HD44780)
• Outline Dimensions: 80 x 36 x 12 mm
• Active Area: 55.45 x 10.75 mm
• Viewing Area: 64.5 x 13.8 mm
• Character Size: 2.95 x 5.15 mm
• Character Pitch: 3.5 x 5.6 mm
• Dot Size: 0.55 x 0.60 mm
• Dot Pitch: 0.6 x 0.65 mm

Applications & Use Cases

• Arduino and Raspberry Pi Projects: Display sensor readings, menus, or status messages.
• Digital Clocks and Timers: Show time, countdowns, or elapsed time.
• Weather Stations: Present temperature, humidity, and pressure data.
• Home Automation Systems: Provide control interfaces for smart devices.
• Educational Kits: Ideal for teaching electronics and programming fundamentals.
• Industrial Control Panels: Display operational parameters and alerts.

What's Included

• 1x Character LCD Module 16x2 (with KS0066U controller)
• (Note: Backlight and connecting cables are not included unless specified)

Compatibility

• Works with Arduino, ESP32, Raspberry Pi, and any microcontroller that supports the HD44780 parallel interface.
• Compatible with popular libraries such as LiquidCrystal for Arduino and similar libraries for other platforms.
• Requires 5V power supply (or 3.3V with level shifting).

MOKWN Recommendation

This 16x2 LCD is an excellent choice for beginners and experienced makers alike. It's a reliable, cost-effective way to add a display to your projects. For best results, pair it with an I2C backpack to reduce wiring complexity, and use a potentiometer for contrast adjustment. At MOKWN, we stock a wide range of accessories to complement this module, ensuring you have everything you need for your build.
