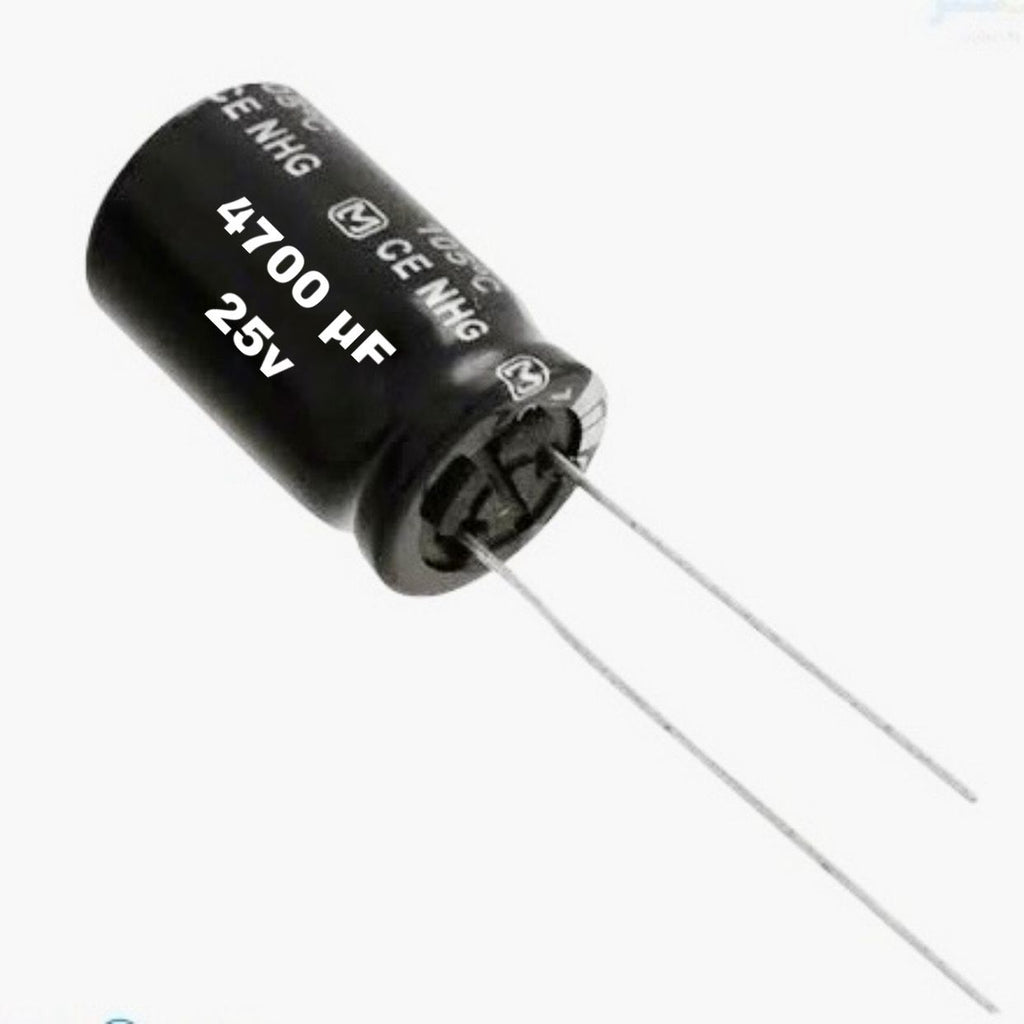

Capacitors 4700mf. 25v.

Overview

The 4700µF 25V capacitor is a high-capacitance electrolytic component essential for power supply filtering, energy storage, and signal smoothing in a wide range of electronic circuits. Whether you're building a robust power supply, audio amplifier, or robotics project, this capacitor ensures stable voltage and reliable performance.

Key Features

• High Capacitance (4700µF): Provides substantial energy storage and effective smoothing of voltage ripples.
• Rated Voltage (25V): Suitable for applications up to 25V DC, offering a good safety margin for typical 12V and 5V circuits.
• Low Equivalent Series Resistance (ESR): Ensures efficient filtering and minimal power loss.
• Long Lifespan: Designed for durability in continuous operation.
• Compact Radial Lead Design: Easy to mount on PCBs or breadboards with standard 0.2" lead spacing.

Technical Specifications

• Capacitance: 4700µF (±20% tolerance)
• Voltage Rating: 25V DC
• Type: Electrolytic (Aluminum)
• Polarity: Polarized (marked with stripe for negative lead)
• Operating Temperature Range: -40°C to +105°C
• Lead Spacing: 5mm (0.2")
• Dimensions: Approx. 12.5mm diameter x 20mm height

Applications & Use Cases

• Power Supply Filtering: Smooths output voltage in AC-DC adapters and DC-DC converters.
• Audio Amplifiers: Reduces hum and noise in power rails.
• Robotics & Motor Drivers: Stabilizes voltage for microcontrollers and motor drivers.
• Energy Storage: Provides backup power for real-time clocks and memory retention.
• Signal Coupling/Decoupling: Used in various analog and digital circuits.

What's Included

• 1x 4700µF 25V Electrolytic Capacitor

Compatibility

• Compatible with standard breadboards, PCBs, and stripboards.
• Works with Arduino, Raspberry Pi, ESP32, and other microcontrollers when used within voltage ratings.
• Ideal for power supply projects, audio circuits, and general electronics prototyping.

MOKWN Recommendation

For Egyptian makers and engineers, this capacitor is a must-have in your component kit. Pair it with our range of voltage regulators and power modules for clean, stable power delivery. Always verify polarity and voltage ratings in your circuit design to ensure optimal performance and safety.
