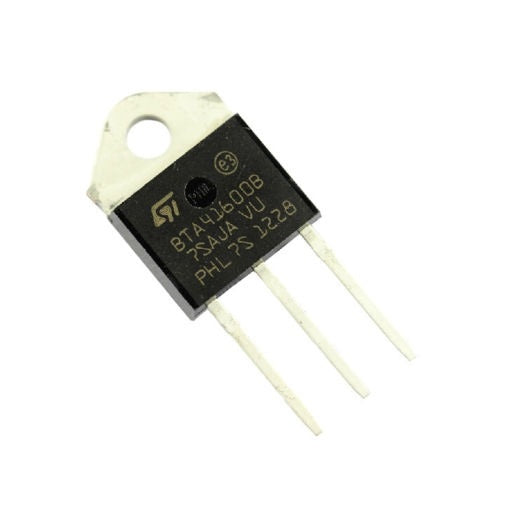

BTA41-600B (High Current Triac)

Overview

The BTA41-600B is a high-current Triac from the BTA series, engineered for demanding AC power switching applications. With a robust 40A RMS current capability and a blocking voltage of 600V, this component is the go-to choice for controlling mains-powered loads in industrial and consumer electronics. Whether you're building a static relay, a heating regulation system, or an induction motor starter, the BTA41-600B delivers reliable, high-performance switching.

Key Features

• High Current Handling: 40A RMS (up to 40A) for heavy AC loads.
• High Blocking Voltage: 600V, suitable for 220V/380V mains applications.
• Insulated Package: Isolated tab (TO-3P) for safe mounting without extra insulation.
• Low Thermal Resistance: Designed for efficient heat dissipation when paired with a heatsink.
• Snubberless Version: Reduced dV/dt capability for improved noise immunity (check specific variant).
• Wide Operating Range: Reliable performance across a broad temperature range.

Technical Specifications

• Repetitive Peak Off-State Voltage (V_DRM/V_RRM): 600V
• RMS On-State Current (I_TRMS): 40A
• Non-Repetitive Surge Current (I_TSM): 400A (typical)
• Gate Trigger Current (I_GT): 50mA (typical)
• Gate Trigger Voltage (V_GT): 1.5V (typical)
• Holding Current (I_H): 60mA (typical)
• Package: TO-3P (isolated)
• Operating Temperature Range: -40°C to +125°C

Applications & Use Cases

• Static Relays: Replace electromechanical relays for longer life and faster switching.
• Heating Regulation: Control resistive loads such as electric heaters, ovens, and soldering irons.
• Water Heaters: Switch mains power to heating elements with high reliability.
• Induction Motor Starting: Manage inrush currents in motor start circuits.
• Lighting Control: Dimming or switching high-power lighting systems.
• AC Motor Speed Controllers: Phase control in fans, pumps, and power tools.

What's Included

• 1x BTA41-600B Triac (TO-3P package)

Compatibility

• Works with standard microcontrollers (Arduino, ESP32, PIC, etc.) via an optocoupler or MOC3021/MOC3063 gate driver.
• Compatible with MOKWN's range of heatsinks and thermal management accessories.
• Suitable for 220V/240V AC mains (50Hz/60Hz) systems.

MOKWN Recommendation

For high-current AC switching projects, the BTA41-600B is a top-tier choice. Ensure you use an adequate heatsink and consider a snubber circuit for inductive loads to maximize reliability. Pair it with a proper gate driver for seamless integration with your microcontroller projects. Trust MOKWN for genuine components and fast delivery across Egypt.
