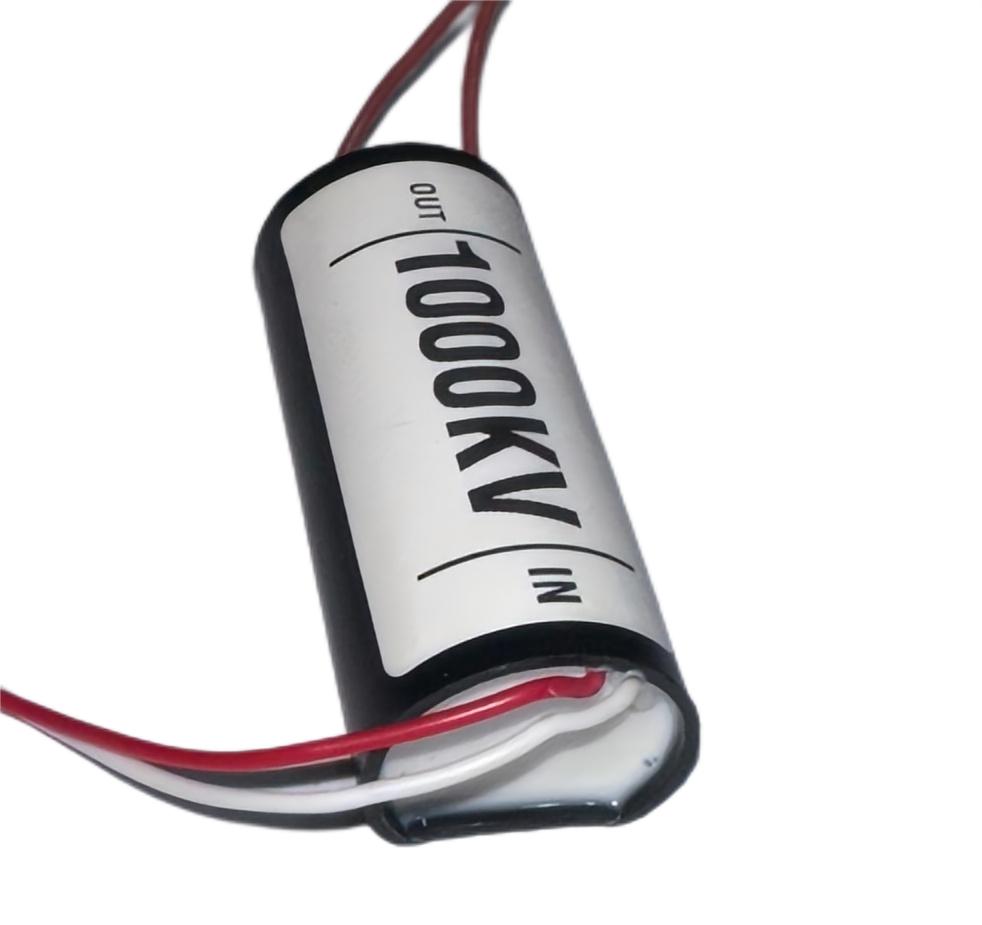

Boost Step-up Power Module DC 3V-6V to 1000KV with protect circuits SMALL SIZE

Overview

Unlock the power of high-voltage experimentation with the MOKWN Boost Step-up Power Module. This compact, high-efficiency module converts a low DC input of 3V to 6V into an astonishing 1000kV (1,000,000V) pulsed high-voltage output. Engineered with built-in protection circuits, it provides a safe and reliable platform for generating high-voltage arcs, powering negative-ion generators, and exploring advanced electronics projects. Whether you are a hobbyist, student, or professional, this module brings high-voltage capabilities to your workbench in a small, easy-to-integrate package.

Key Features

• High Voltage Output: Produces a staggering 1000kV pulse DC output, ideal for high-voltage applications.
• Wide Input Range: Operates on a simple 3V to 6V DC supply, making it compatible with common batteries and power sources.
• Built-in Protection: Integrated protection circuits safeguard the module and connected components from overcurrent and voltage spikes.
• Compact Design: Small footprint (55 x 20mm) allows for easy integration into tight spaces and portable projects.
• Pre-wired Connections: Comes with 10cm input and 12cm output wires, color-coded for hassle-free setup.
• Impressive Arc Capability: Can generate visible arcs up to 10-20mm, perfect for demonstrations and experiments.

Technical Specifications

• Input Voltage: DC 3V – 6V
• Input Current: 2A – 5A (depending on input voltage)
• Output Voltage: 1,000,000V (1000kV) pulse DC type
• Arc Discharge Distance: 10mm – 20mm
• Input Wire Length: 10cm (Red: Positive, Green: Negative)
• Output Wire Length: 12cm
• Module Size: 55 x 20mm
• Protection: Built-in protection circuits

Applications & Use Cases

• Negative Ion Generators: Perfect for air purification and ionization projects.
• High-Voltage Experiments: Ideal for educational demonstrations of electrical arcs and plasma.
• Electrostatic Precipitators: Can be used in DIY air filtration systems.
• Science Fair Projects: Create impressive high-voltage displays safely.
• Specialized Lighting: Explore neon or plasma tube lighting effects.
• Industrial Testing: Useful for testing insulation and high-voltage components (with proper safety gear).

What's Included

• 1x Boost Step-up Power Module (55 x 20mm)
• Pre-attached input wires (10cm, red positive, green negative)
• Pre-attached output wires (12cm)

Compatibility

• Input Power: Any DC source providing 3V to 6V, such as 2x AA/AAA batteries, a 3.7V Li-ion cell, or a 5V USB power bank (with appropriate current rating).
• Output: High-voltage pulse output, suitable for connecting to electrodes, ionizers, or other high-voltage components.

MOKWN Recommendation

This boost module is a must-have for makers and educators looking to explore high-voltage electronics safely. Its compact size and built-in protection make it a reliable choice for projects ranging from ionizers to arc generators. Always handle high-voltage components with care and use appropriate safety equipment. For any questions or project advice, our team at MOKWN is here to help you power up your next innovation.
