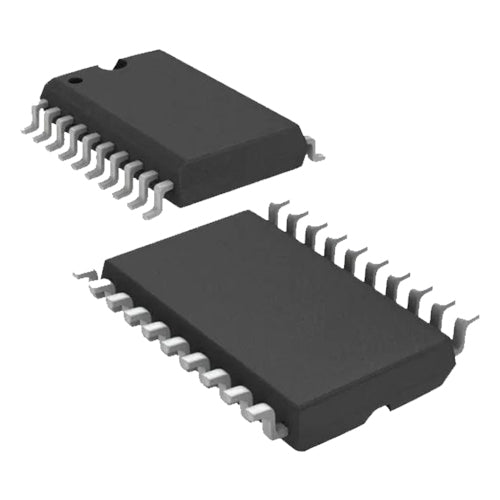

74HC245D (Octal Bus Transceiver- 3 State Outputs) SMD

Overview

The 74HC245D is a high-speed CMOS Octal Bus Transceiver designed for bidirectional asynchronous communication between two data buses. Featuring three-state non-inverting outputs, this SMD component is essential for bus-oriented systems where data direction control and high-impedance states are required. Manufactured using silicon-gate CMOS technology, it achieves the low power dissipation of standard CMOS while operating at speeds comparable to LSTTL.

Key Features

• Octal Bidirectional Bus Transceiver: Facilitates data transfer between two 8-bit buses.
• Three-State Outputs: Allows connection to a shared bus without signal contention.
• Non-Inverting Logic: Preserves data integrity without inversion.
• Direction Control (DIR): Determines data flow from A to B or B to A.
• Output Enable (OE): Places outputs in high-impedance state for bus isolation.
• High-Speed CMOS Technology: Combines low power consumption with LSTTL-compatible speed.
• Wide Operating Voltage: Supports 2V to 6V supply, compatible with TTL levels.
• SMD Package: Compact SOIC-20 footprint, ideal for space-constrained PCB designs.

Technical Specifications

• Logic Family: 74HC (High-Speed CMOS)
• Function: Octal Bus Transceiver with Three-State Outputs
• Number of Bits: 8
• Output Type: Three-State, Non-Inverting
• Supply Voltage (VCC): 2V to 6V
• Input/Output Compatibility: TTL compatible
• Propagation Delay: Typically 12 ns at 5V
• Operating Temperature Range: -40°C to +125°C
• Package: SOIC-20 (SMD)

Applications & Use Cases

• Data Bus Isolation: Ideal for multiplexing data buses in microcontroller systems.
• Memory Interfacing: Connects memory modules to processors with direction control.
• Peripheral Expansion: Enables multiple devices to share a common data bus.
• Level Shifting: Facilitates voltage level translation between different logic families.
• Robotics & Automation: Used in control systems for data routing and signal buffering.
• Prototyping & Education: Essential component for electronics labs and maker projects.

What's Included

• 1x 74HC245D Octal Bus Transceiver (SMD, SOIC-20)

Compatibility

• Compatible with 74HC, 74HCT, and other 5V logic families.
• Replaceable with standard 74HC245 ICs in SMD packages.
• Can be used with Arduino, Raspberry Pi, and other microcontrollers with level shifting considerations.

MOKWN Recommendation

For Egyptian electronics enthusiasts, students, and professionals, the 74HC245D is a must-have for any digital logic project. Its versatility in bus management and signal routing makes it a staple in embedded systems. We recommend pairing it with our range of breadboards, jumper wires, and logic level converters for seamless integration. Whether you're building a robot, a data logger, or a custom computer, this transceiver will ensure reliable data flow. Order now and elevate your project's performance!
