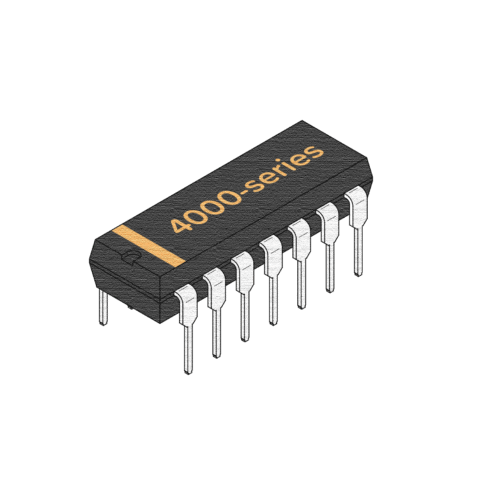

4027 (Dual JK Flip-Flop)

Overview

The 4027 is a dual JK flip-flop integrated circuit from the 40-series CMOS family. It contains two independent JK flip-flops with set and reset inputs, making it a versatile building block for digital electronics. Ideal for memory storage, toggling, frequency division, and sequential logic circuits, the 4027 is a must-have for any electronics enthusiast.

Key Features

• Dual JK flip-flops in a single package
• Set and reset inputs for each flip-flop
• Wide operating voltage range (3V to 15V)
• Low power consumption typical of CMOS logic
• High noise immunity
• Direct interface with other CMOS and TTL logic (with voltage level considerations)

Technical Specifications

• Logic Family: CMOS 40-series
• Number of Flip-Flops: 2
• Type: JK with Set and Reset
• Supply Voltage: 3V to 15V
• Input Voltage: Typically 0V to VDD
• Operating Temperature Range: -55°C to +125°C
• Package Options: DIP-16, SOIC-16, etc.
• Propagation Delay: Typically 60ns at 5V

Applications & Use Cases

• Frequency dividers and counters
• Shift registers and data storage
• Control and sequencing logic
• Toggle switches and debouncing circuits
• Digital alarm clocks and timers
• Educational projects for learning sequential logic

What's Included

• 1x 4027 Dual JK Flip-Flop IC

Compatibility

• Compatible with 4000-series CMOS logic family
• Can be used with Arduino, Raspberry Pi, and other microcontrollers (level shifting may be required for 5V logic)
• Works with standard breadboards and PCB prototyping

MOKWN Recommendation

The 4027 is a reliable and cost-effective choice for implementing sequential logic in your projects. Whether you're a student learning digital electronics or a professional prototyping, this IC offers the flexibility and performance you need. Order now from MOKWN and get your project running in no time!
